  11. GP Motor, 3 HP, 1,170 RPM, 230/460V AC, 112M

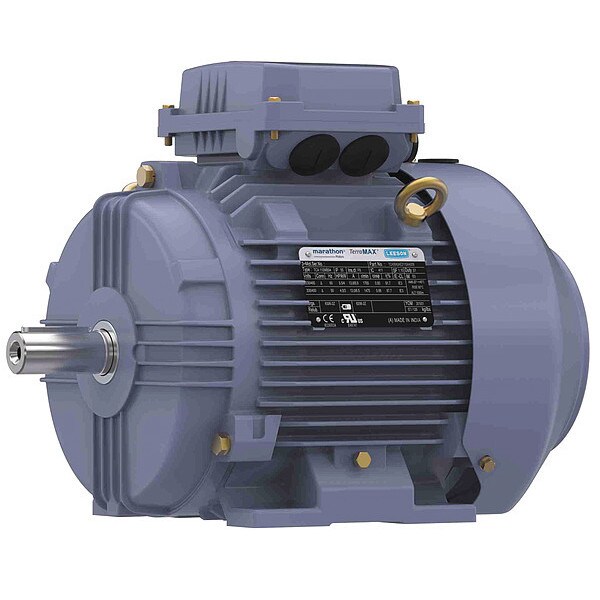

Marathon GP Motor, 3 HP, 1,170 RPM, 230/460V AC, 112M TCA2P23AE211GAA009 - main

GP Motor, 3 HP, 1,170 RPM, 230/460V AC, 112M

  • Mfr # TCA2P23AE211GAA009

  • Zoro # G8661744

product price: $1,090.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3
RPM Range
1,101-1,200
Voltage
230/460V AC
Frame
112M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA2P23AE211GAA009
Zoro #
G8661744
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
60 mm
Manufacturers Warranty Length
1 yr
Shaft Dia.
28 mm
Overall Length
399 mm
Length Less Shaft
339 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
3
RPM Range
1,101-1,200
Voltage
230/460V AC
Frame
112M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
8.8/4.4 A
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency
89.5 %
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Duty
Continuous
kW
2.2
Standards
CE, UL Recognized
Nameplate RPM
1170 rpm
Phase
Three
Ins. Class
F
Motor Bearings
Ball
CC Number
CC003A
Hz
60/50 Hz
Motor Application
General Purpose
Motor Service Factor
1.15
Voltage @ 50Hz
200/400
HP @ 50Hz
3 hp
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Full Load Amps @ 50Hz
8.2/4.1 A
Usable @ 200V
No
Inverter Rated
Yes
Usable @ 208V
No
NEMA Design
N
RPM @ 50Hz
1170 rpm
No. of Speeds
1
Weight
127.9 lb
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.2 kW, Nameplate RPM 1170 rpm, Frame 112M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.8/4.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
