Shop MARATHON

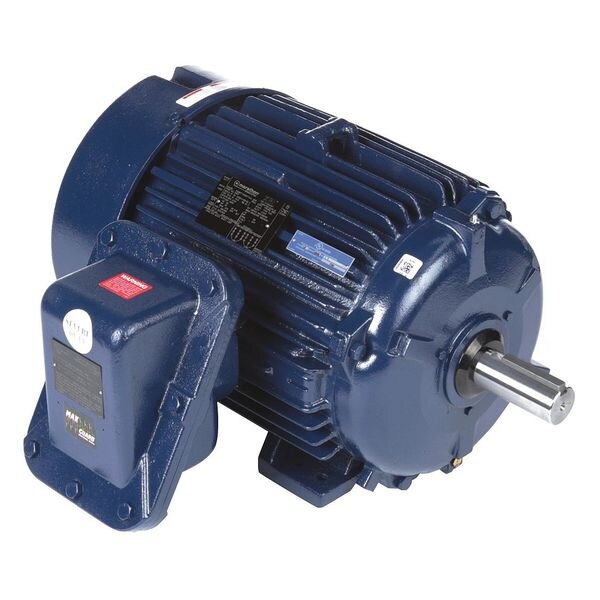

Hazardous Loc Mtr, 3 Ph, TEFC, 20 HP, T3B

  • Mfr # 286TTGN16577
  • Zoro # G3525295
product price:
$
4,878.99
/ea
Additional $325.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
20 hp
RPM Range
1,101-1,200
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
286TTGN16577
Zoro #
G3525295
UPC #
-
Country of Origin
United States
Motor Design
Three-Phase
Phase
Three
HP
20 hp
RPM Range
1,101-1,200
Voltage
230V AC, 460V AC
Frame
286T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Motor Frame Material
Cast Iron
CC Number
CC003A
Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
Full Load Amps
53.5/26.8 A
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Efficiency Group
NEMA Premium Efficient
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Listed
Temp. Code
T3B
Nameplate RPM
1,175 RPM
Item
Hazardous Location Motor
Motor Bearings
Ball
Nominal Efficiency
91.7 %
Ins. Class
F
Green Certification or Other Recognition
NEMA Premium(R) Rated
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Shaft Design
Keyed
Motor Service Factor
1.15
Duty
Continuous
Motor Application
Hazardous Location
NEMA Design
B
Hz
60 Hz
Includes
(11) Leads in the Conduit Box
No. of Speeds
1
Hazardous Location Division
Division I
Weight
87 lb
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Hazardous Location Group
Group C, Group D, Group F, Group G
Frequency
60 Hz
Shaft Design
Keyed
NEMA Design Class
B
Insulation Class
F
Product Type
Hazardous Location Motor
Mounting Position
Horizontal
Bearing Type
Ball
Manufacturers Warranty
3 yr
Full Load Current @ 60 Hz
53.5/26.8 A
Temperature Code
T3B
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Application
Hazardous Location
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,175 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 53.5/26.8 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
