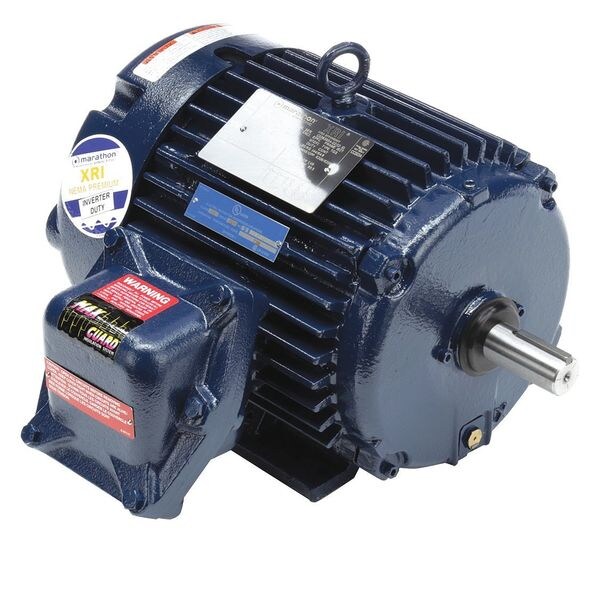

Hazardous Loc Mtr, 3 Ph, TEFC, 3 HP, T3B
Mfr # 182TTGCD6501
Zoro # G3527115
product price: $1,191.99
/ea
Additional $70.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
182TTGCD6501
Zoro #
G3527115
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 7/8 in
Shaft Dia.
1 1/8 in
Lead Length
6 in
Overall Length
15 7/8 in
Length Less Shaft
13 in
Manufacturers Warranty Length
3 yr
Description
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 7.6/3.8 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
