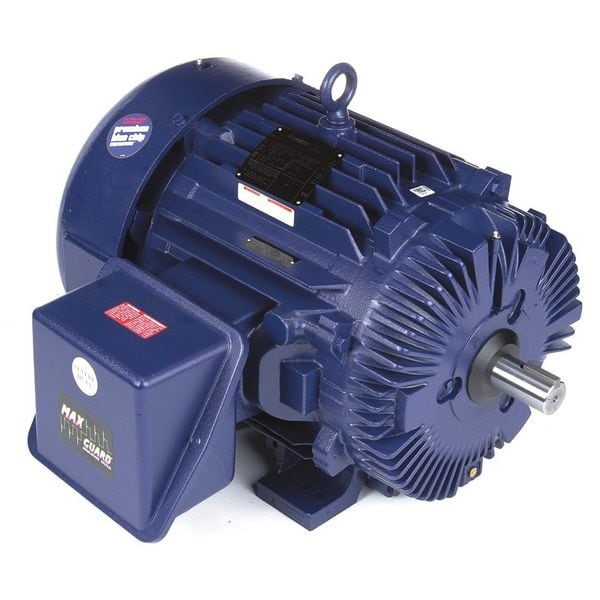

Marathon General Purpose Mtr, 3-Ph, TEFC, 75 HP 365TSTFCD6501 - main

General Purpose Mtr, 3-Ph, TEFC, 75 HP

  • Mfr # 365TSTFCD6501

  • Zoro # G2245321

product price:  $9,352.95
/ea
Additional $420.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
75
RPM Range
3001-3600
Voltage
460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
365TSTFCD6501
Zoro #
G2245321
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
4 in
Shaft Dia.
1 7/8 in
Length Less Shaft
26 3/8 in
Overall Length
30 3/8 in
Lead Length
3" to 8"
Manufacturers Warranty Length
1 yr
Frame Size
365TS
Shaft Diameter
1 7/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
75
RPM Range
3001-3600
Voltage
460V AC
Frame
365TS
Hazardous Location Class
1 C,D / 2 F,G
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Duty
Continuous
Motor Efficiency Group
NEMA Premium Efficient
Ins. Class
H
Frame Material
Cast Iron
Motor Frame Material
Cast Iron
Item
Severe Duty Motor
Full Load Amps
84.0 A
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
94.5 %
Motor Shaft Design
Keyed
CC Number
CC003A
Hz
60 Hz
Motor Application
General Purpose
Standards
CSA Certified, UL Listed
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Nameplate RPM
3570 rpm
Motor Bearings
Ball
No. of Speeds
1
Motor Service Factor
1.15
RPM Group
3001-3600
Includes
Conduit Box
Motor Shaft Rotation
CW/CCW
NEMA Design
B
Green Certification or Other Recognition
NEMA Premium(R) Rated
Temp. Code
T2B
Weight
939 lb
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Inverter Rated
Yes
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,785/1,480 RPM
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
B
Full Load Current @ 60 Hz
84.0 A
Nameplate Voltage @ 50 Hz
380V AC, 460V AC
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
H
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Mounting Position
Horizontal
Application
General Purpose
Product Type
Severe Duty Motor
Inverter Rating
Inverter Rated

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 3570 rpm, Frame 365TS, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 84.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Listed
