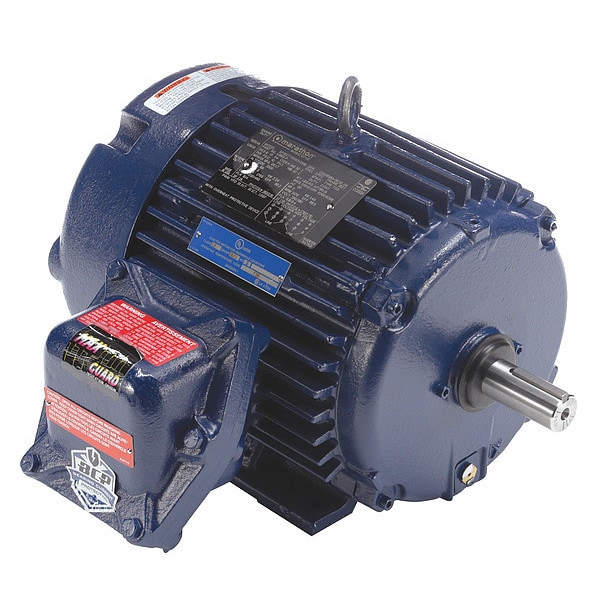

HazLoc Motor, 3 HP, 1765 RPM, 208-230/460V

  • Mfr # 182TTGCD6541
  • Zoro # G1996519
product price:
$
1,416.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTGCD6541
Zoro #
G1996519
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 7/8 in
Shaft Dia.
1 1/8 in
Overall Length
15 7/8 in
Length Less Shaft
13 in
Manufacturers Warranty Length
3 yr
Wire Rope Length
15 7/8 in
Frame Size
182T
Shaft Diameter
1 1/8 in
Length
15 7/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
182T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Nameplate RPM
1,765 RPM
CC Number
CC003A
Motor Efficiency Group
NEMA Premium Efficient
Nominal Efficiency
90.2 %
Standards
UL Certified for Canada, UL Listed
Motor Application
Hazardous Location
Motor Frame Material
Cast Iron
Full Load Amps
8.0/4.0 A
Temp. Code
T3B
Motor Shaft Design
Keyed
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Frame Material
Cast Iron
Motor Service Factor
1.15
Includes
(11) 8 in Leads through 3/4 in NPT Nipple
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
NEMA Design
B
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Item
Hazardous Location Motor
Duty
Continuous
Green Certification or Other Recognition
NEMA Premium(R) Rated
Hazardous Location Division
Division I
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
No. of Speeds
1
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Weight
3,296 lb
Hazardous Location Group
Group C, Group D, Group F, Group G
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
8.0/4.0 A
Frequency
60 Hz
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Product Type
Hazardous Location Motor
Application
Hazardous Location
Mounting Position
Horizontal
Bearing Type
Ball
Temperature Code
T3B
Insulation Class
F
Manufacturers Warranty
3 yr
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 8.0/4.0 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
