  11. Metric Motor, 10 HP, 1,775 RPM, 230/460V

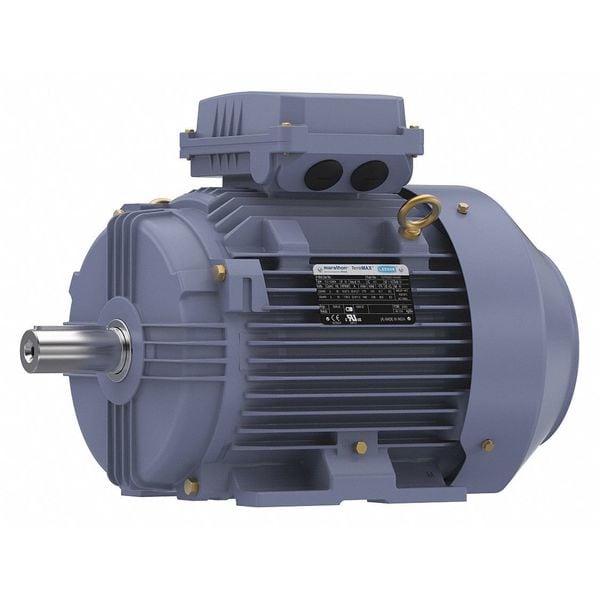

Marathon Metric Motor, 10 HP, 1,775 RPM, 230/460V TCA7P52AE211GAA009 - main

Metric Motor, 10 HP, 1,775 RPM, 230/460V

  • Mfr # TCA7P52AE211GAA009

  • Zoro # G8661473

product price: $1,274.81
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
10
RPM Range
1701-1800
Voltage
230/460V AC
Frame
132M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TCA7P52AE211GAA009
Zoro #
G8661473
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Dia.
38 mm
Shaft Length
80 mm
Overall Length
503 mm
Length Less Shaft
423 mm

Details

Item
Metric Motor
Motor Design
Three-Phase
HP
10
RPM Range
1701-1800
Voltage
230/460V AC
Frame
132M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
25.4/12.7 A
Motor Application
General Purpose
Hz
60/50 Hz
Nominal Efficiency
91.7 %
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
CC Number
CC003A
Standards
CE, UL Recognized
Ins. Class
F
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Motor Service Factor
1.15
Nameplate RPM
1775 rpm
Phase
Three
Motor Frame Material
Cast Iron
kW
7.5
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
Weight
216.1 lb
RPM @ 50Hz
1775 rpm
HP @ 50Hz
10 hp
Full Load Amps @ 50Hz
22.6/11.3 A
Voltage @ 50Hz
200/400
Usable @ 200V
No
Motor Mounting Position
Horizontal
Usable @ 208V
No
NEMA Design
N
Inverter Rated
Yes
No. of Speeds
1
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, 7.5 kW, Nameplate RPM 1775 rpm, Frame 132M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 25.4/12.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
