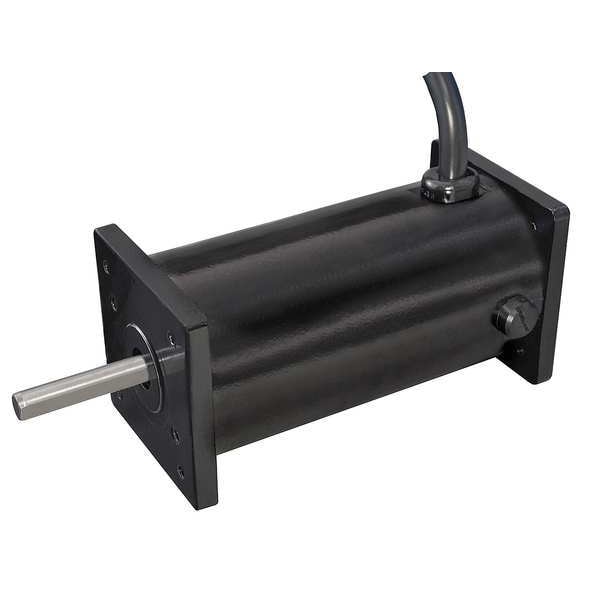

DC Motor, PM, TENV, 1/27 HP, 1800 rpm, 90VDC

  • Mfr # 3XE22E

  • Zoro # G2850276

product price:
$
253.99
/ea
Free Shipping & Returns

Key Features

HP
1/27
Voltage
90V DC
Nameplate RPM
1,810 RPM
Shaft Dia.
5/16 in
Frame
Non-Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3XE22E
Zoro #
G2850276
UPC #
-
Country of Origin
Mexico
Item
DC Permanent Magnet Motor
HP
1/27
Voltage
90V DC
Nameplate RPM
1,810 RPM
Frame
Non-Standard
Full Load Amps
0.46 A
RPM Range
1,801-3,000
Motor Thermal Protection
None
Motor Design
Permanent Magnet
RPM Group
1701-1800
Motor Mounting Type
Face/Base
Brush Type
Carbon
Motor Enclosure Design
Totally Enclosed Nonventilated
Face Mounting O.C.
1-3/4 x 1-3/4
Max. Ambient Temp.
40 Degrees C
Ins. Class
F
Base Mounting O.C.
4-11/16 x 1-1/4 in
Full Load Torque
1.3 in-lb
Standards
UL Recognized (E47479)
Voltage Compatibility
90V DC
Motor Application
General Purpose
Rotation
CW/CCW
Bearings
Ball
Stud Quantity
4
Mounting Stud Location
4/Bottom
Weight
3 1/2 lb
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Mounting Position
Universal
Duty Cycle
Continuous
Extended Thru-Bolts
No
Removable Base
No
Motor Frame Material
Steel
Nominal Efficiency
67.3 %
Capacitor Required
No
Replacement For
3XE22
Mounting Stud Pattern
4-11/16 in x 1-1/4 in
Shaft Design
Flat
Frame Material
Steel
Product Type
DC Motor
Full Load Current
0.46 A
Manufacturers Warranty
1 yr
Nameplate Voltage
90V DC
Insulation Class
F
Nameplate Service Factor
1
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Application
General Purpose
Bearing Type
Ball

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/27 HP, Nameplate RPM 1,810 RPM, Voltage 90V DC, 0.46 A Full Load Amps, Non-Standard Frame, Full Load Torque 1.3 in-lb, Replacement For 3XE22, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Motor Mounting Position Universal
