Shop MARATHON

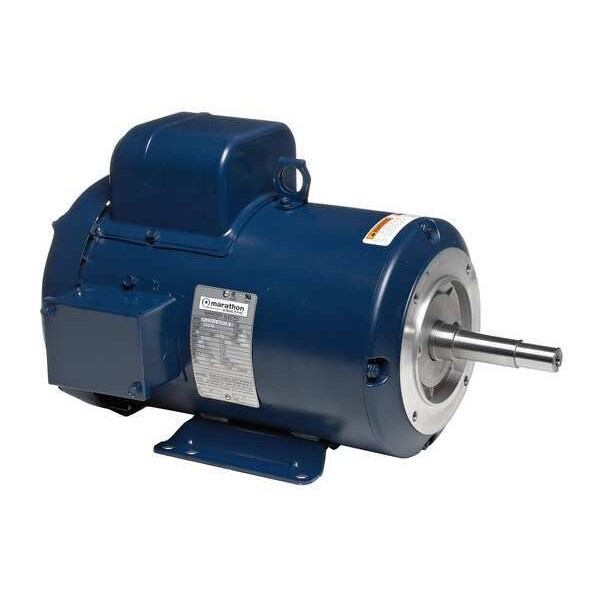

Pump Motor, 1-Ph, 10 HP, 3400-3600,215JM

  • Mfr # 215TBFW7010

  • Zoro # G9922516

product price:  $1,989.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Capacitor-Start/Run
HP
10
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TBFW7010
Zoro #
G9922516
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
17 13/16 in
Shaft Length
4 1/4 in
Shaft Dia.
7/8 in
Overall Length
22 1/16 in
Height
11 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
11.1 in
Shaft Diameter
7/8 in
Bolt Circle Diameter
7 1/4 in
Frame Size
215JM
Body Diameter
11.1 in
Wire Rope Length
22 1/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start/Run
HP
10
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
230V AC
Frame
215JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Duty
Continuous
Ins. Class
F
Nominal Efficiency
83.8 %
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Standards
CE, CSA, IP 22, NEMA JM, UL
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Frame Material
Steel
Frame Material
Steel
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Phase
Single
Motor Sub Application
Close-Coupled Pump
Motor Application
Pump
Inverter Rated
Not Inverter Rated
Full Load Amps
41.5 A
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Hz
60 Hz
Motor Shaft Design
Keyed, Threaded
Motor Efficiency Group
Standard Efficient
Duty Cycle
Continuous
Weight
236 lb
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Conduit Box Position
F1, F2
Shaft Type
JM Threaded
Application
Pump
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Frequency
60 Hz
Shaft Thread Type
JM
Insulation Class
F
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Mounting Position
Horizontal
Full Load Current @ 60 Hz
41.5 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Efficiency Rating
Standard Efficiency (IE1)

Description

Close-Coupled Pump Motor, Body Dia. 11.1 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 41.5, Height 11 in, HP 10, Ins. Class F, Inverter Rated No, Length Less Shaft 17 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel
