Shop MARATHON

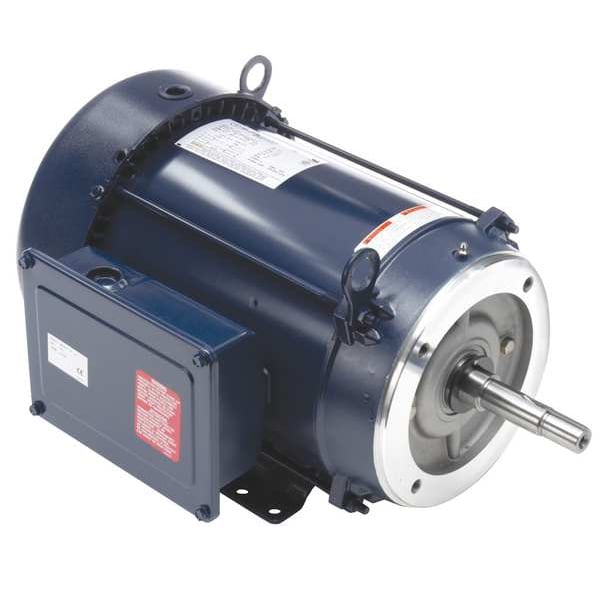

Pump Motor, 1-Ph, 7-1/2 HP, 3400-3600,213JM

  • Mfr # 213TBFW7010

  • Zoro # G1994172

product price:  $1,428.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
HP
7 1/2
RPM Range
3,001-3,600
Nameplate RPM
3,465
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TBFW7010
Zoro #
G1994172
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
20 9/16 in
Shaft Length
4 1/4 in
Shaft Dia.
7/8 in
Length Less Shaft
16 5/16 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
11.1 in
Height
11 in
Shaft Diameter
7/8 in
Body Diameter
11.1 in
Bolt Circle Diameter
7 1/4 in
Frame Size
213JM
Wire Rope Length
20 9/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start/Run
HP
7 1/2
RPM Range
3,001-3,600
Nameplate RPM
3,465
Voltage
230V AC
Frame
213JM
Motor Mounting Type
Face/Base
Motor Service Factor
1
Motor Efficiency Group
Standard Efficient
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Standards
CE, CSA, IP 22, NEMA JM, UL
Phase
Single
Inverter Rated
Not Inverter Rated
Ins. Class
F
Motor Sub Application
Close-Coupled Pump
Motor Bearings
Ball
Motor Shaft Design
JM Threaded
Motor Application
Pump
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Nominal Efficiency
81.5 %
Motor Frame Material
Steel
Full Load Amps
32 A
Frame Material
Steel
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Hz
60 Hz
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Weight
90 lb
Conduit Box Position
F1, F2
Shaft Type
JM Threaded
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Horizontal
Product Type
Pump Motor
Frequency
60 Hz
Full Load Current @ 60 Hz
32.0 A
Number of Speeds
1
Shaft Thread Type
JM
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
F
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Threaded
Bearing Type
Ball

Description

Close-Coupled Pump Motor, Body Dia. 11.1 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JM, Hz 60 Hz, Full Load Amps 32.0, Height 11 in, HP 7 1/2, Ins. Class F, Inverter Rated Not Inverter Rated, Length Less Shaft 16 5/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
