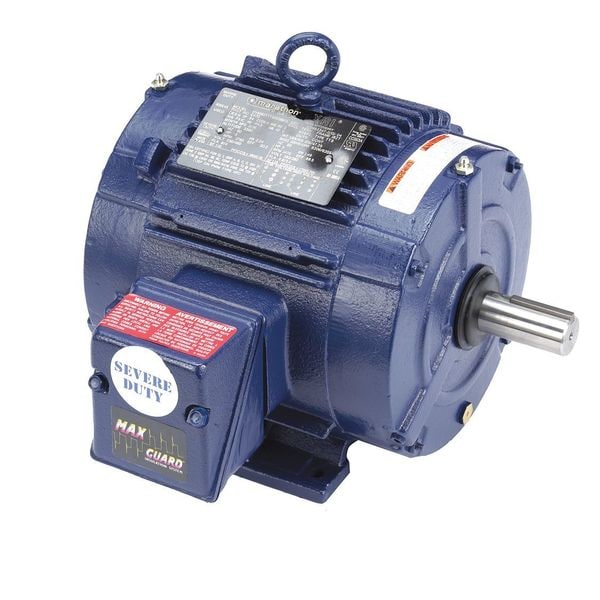

Severe Duty Mtr, 3-Ph, TENV, 3 HP
Mfr # 182TTTCD6538
Zoro # G5803025
product price: $789.99
/ea
Item requires special delivery charges. A $75.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Phase
Three
HP
3
RPM Range
1701-1800
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
182TTTCD6538
Zoro #
G5803025
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
10 1/16 in
Shaft Length
2 3/4 in
Shaft Dia.
1 1/8 in
Overall Length
12 13/16 in
Lead Length
9" to 8"
Description
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 3 HP, Nameplate RPM 1760 rpm, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.8/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
