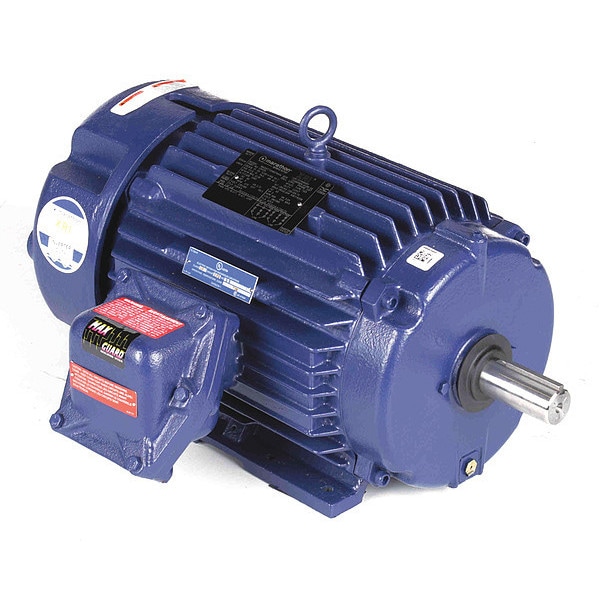

Hazardous Location Motor, 3-Phase, 10 HP

  • Mfr # 215TTGCD6501
  • Zoro # G6577188
product price:
$
1,769.99
/ea
Additional $195.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTGCD6501
Zoro #
G6577188
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 1/4 in
Shaft Dia.
1 3/8 in
Overall Length
19 5/8 in
Lead Length
8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 3/8 in
Wire Rope Length
19 5/8 in
Frame Size
215T
Length
19 5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
215T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Max. Ambient Temp.
40 Degrees C
NEMA Design
B
Motor Frame Material
Cast Iron
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Bearings
Ball
Hz
60 Hz
Ins. Class
F
Motor Service Factor
1.15
CC Number
CC003A
Motor Shaft Design
Keyed
Motor Application
Hazardous Location
Nominal Efficiency
90.2 %
Full Load Amps
23.8/11.9 A
Nameplate RPM
3,520 RPM
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Standards
UL Certified for Canada, UL Listed
Temp. Code
T3B
Item
Hazardous Location Motor
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
No. of Speeds
1
Hazardous Location Division
Division I
Weight
123 lb
Hazardous Location Group
Group C, Group D, Group F, Group G
Frequency
60 Hz
Manufacturers Warranty
3 yr
Number of Speeds
1
Mounting Position
Horizontal
Shaft Design
Keyed
Temperature Code
T3B
Bearing Type
Ball
Product Type
Hazardous Location Motor
Application
Hazardous Location
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
23.8/11.9 A
NEMA Design Class
B
Insulation Class
F
Frame Material
Cast Iron
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,520 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 23.8/11.9 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
