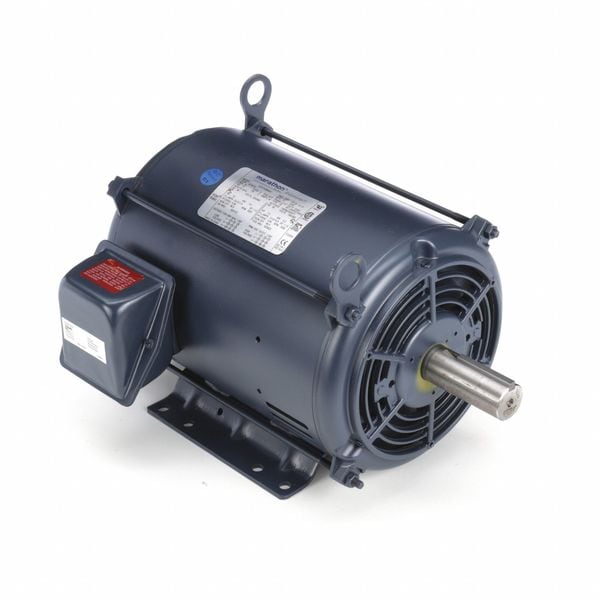

Three-Phase General Purpose Motor, 10 HP, 213T Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM

  • Mfr # 213TTDBD6001

  • Zoro # G5500835

product price:
$
943.23
/ea
Free Shipping & Returns

Key Features

HP
10
Nameplate RPM
3520 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
24.2/12.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
213TTDBD6001
Zoro #
G5500835
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
10
Nameplate RPM
3520 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
24.2/12.1 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.8 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
125 lb
Usable @ 208V
Not Usable at 208V
Inverter Rating
Inverter Rated
Number of Speeds
1
Frequency
60 Hz
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
NEMA Design Class
B
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
230/460V AC
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
24.2/12.1 A
Product Type
General Purpose Motor
Frame Material
Steel
Nameplate RPM @ 50 Hz
1,770 RPM
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 3520 rpm, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.2/12.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.8 Percent, Continuous Duty, 3001-3600, CE, CSA (LR2025), UL (E49747)
