  6. Three-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM

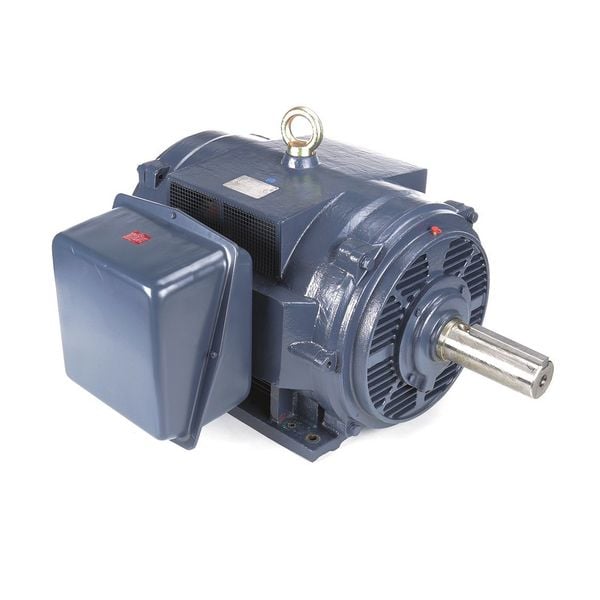

Marathon Three-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM 444TTDCD6077 - main

Three-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM

  • Mfr # 444TTDCD6077

  • Zoro # G9877497

product price:  $10,882.68
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
100
Nameplate RPM
1190 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
232.0/116.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444TTDCD6077
Zoro #
G9877497
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
36 1/16 in
Overall Length
44 9/16 in
Shaft Dia.
3 3/8 in
Shaft Length
8 1/2 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
100
Nameplate RPM
1190 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
232.0/116.0 A
Frame
444T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95 %
Standards
CSA Certified, UL Recognized
CC Number
CC003A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
1,635 lb
Usable @ 208V
No
NEMA Design
B
Usable @ 200V
No
Duty Cycle
Continuous
Part Winding Start Capable
Yes
Capacitor Required
No
Inverter Rating
10:1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 1190 rpm, Frame 444T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 232.0/116.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1,101-1,200
