Shop MARATHON

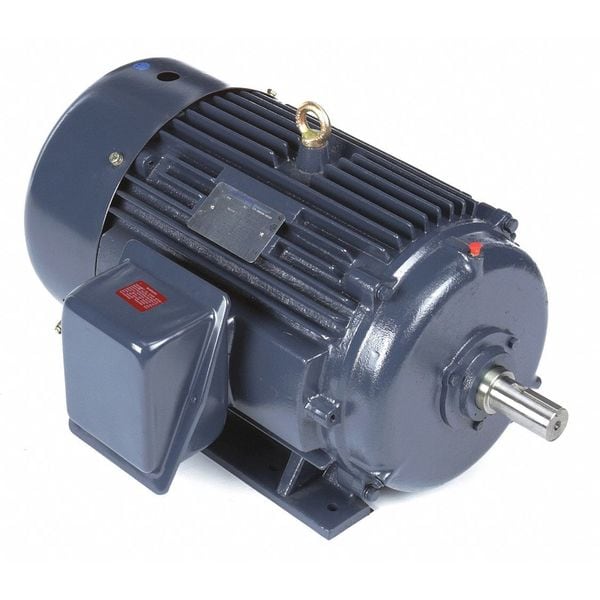

Three-Phase General Purpose Motor, 30 HP, 286TS Frame, 230/460V AC Voltage, 3550 rpm Nameplate RPM

  • Mfr # 286TSTFCD6001

  • Zoro # G9815653

product price:
$
2,617.17
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
30
Nameplate RPM
3550 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
71.0/35.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
286TSTFCD6001
Zoro #
G9815653
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
30
Nameplate RPM
3550 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
71.0/35.5 A
Frame
286TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Weight
353 lb
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
71.0/35.5 A
NEMA Design Class
B
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
200/400V AC
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Number of Speeds
1
Nameplate RPM @ 50 Hz
3,540 RPM
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 3550 rpm, Frame 286TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 71.0/35.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 3001-3600
