Shop MARATHON

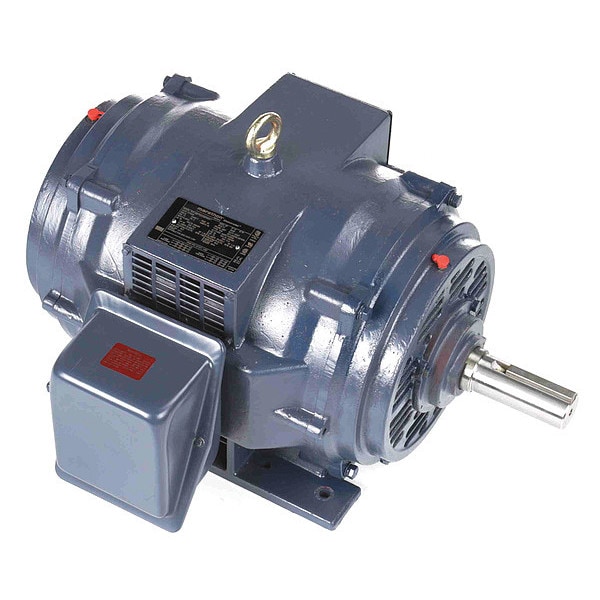

Three-Phase General Purpose Motor, 20 HP, 286T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM

  • Mfr # 286TTDBD6076
  • Zoro # G4873659
product price:
$
2,521.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
1182 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
52.5/26.3 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
286TTDBD6076
Zoro #
G4873659
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
22 5/16 in
Overall Length
27 1/16 in
Shaft Dia.
1 7/8 in
Shaft Length
4 13/16 in
Manufacturers Warranty Length
1 yr
Frame Size
286T
Shaft Diameter
1 7/8 in
Wire Rope Length
27 1/16 in
Length
27 1/16 in

Details

Item
General Purpose Motor
HP
20
Nameplate RPM
1182 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
52.5/26.3 A
Frame
286T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
92.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Weight
420 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
NEMA Design
B
Inverter Rating
Inverter Rated
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
B
Number of Speeds
1
Nameplate RPM @ 50 Hz
1,765 RPM
Application
General Purpose
Insulation Class
F
Mounting Position
Horizontal
Bearing Type
Ball
Full Load Current @ 60 Hz
52.5/26.3 A
Manufacturers Warranty
1 yr
Nameplate Voltage @ 50 Hz
190/380V AC

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1182 rpm, Frame 286T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 52.5/26.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
