Shop CENTURY

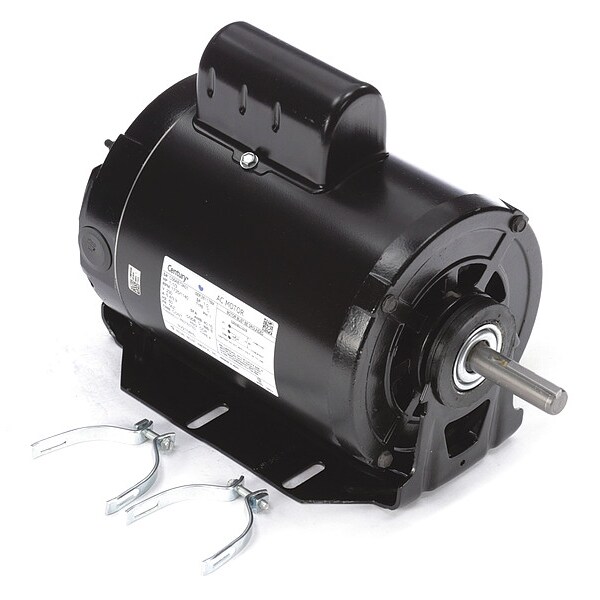

OEM Replacement Motor, 1 1/3 hp

  • Mfr # SV2104HL

  • Zoro # G3262150

product price:  $430.99
/ea
Free Shipping & Returns

Key Features

Frame
56Z
HP
1-1/3 HP
Motor Application
OEM Replacement
Motor Design
Capacitor Start Induction Run
Motor Enclosure Design
Open Drip Proof
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SV2104HL
Zoro #
G3262150
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8"
Shaft Length
2.13"
Length Less Shaft
9 15/16 in
Body Dia.
6.47"
Manufacturers Warranty Length
1 yr
Overall Length
12.09"
Wire Rope Length
12 1/16 in
Shaft Diameter
5/8 in
Frame Size
56Z

Details

Frame
56Z
HP
1-1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Capacitor Start Induction Run
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Evaporator Coil and Refrigeration Fan HVAC/R Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1725/1140 rpm
No. of Speeds
Single and Two Speed
Number of Shafts
1
Phase
1
RPM Range
1,701-1,800
Voltage
230V
Motor Bearings
Sleeve
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
6.4/3.9A
Capacitor Required
Included
Standards
CSA Certified
Motor Shaft Design
Keyed
Hz
60 Hz
Motor Service Factor
1.00
Application
Evaporator Coil and Refrigeration Fan
Voltage Compatibility
230V AC
Weight
33 lb
Motor Frame Material
Rolled Steel
Duty Cycle
Continuous
Shaft Design
Keyed
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Product Type
Refrigeration Motor
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Full Load Current @ 60 Hz
6.4/3.9 A
Compatible Brand
Century
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Number of Speeds
1

Description

Refrigeration Motor, Single Phase, Motor Design Capacitor-Start, 1 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 6.4/3.9 A, 56Z Frame, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
