Shop MARATHON

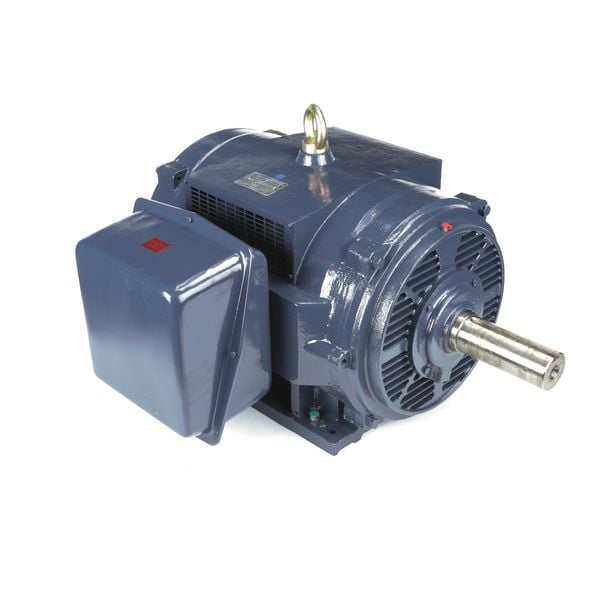

Three-Phase General Purpose Motor, 200 HP, 445T Frame, 460V AC Voltage, 1790 rpm Nameplate RPM

  • Mfr # 445TTDCD6060

  • Zoro # G9877463

product price:
$
12,164.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
200
Nameplate RPM
1790 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
223.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
445TTDCD6060
Zoro #
G9877463
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
36 1/16 in
Overall Length
44 9/16 in
Shaft Dia.
3 3/8 in
Shaft Length
8 1/2 in
Manufacturers Warranty Length
1 yr
Frame Size
445T
Shaft Diameter
3 3/8 in
Wire Rope Length
44 9/16 in
Length
44 9/16 in

Details

Item
General Purpose Motor
HP
200
Nameplate RPM
1790 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
223.0 A
Frame
445T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.8 %
Standards
CSA Certified, UL Listed
CC Number
CC003A
Includes
Conduit Box
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Weight
2,017 lb
Duty Cycle
Continuous
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Capacitor Required
No
Inverter Rating
Inverter Rated
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Nameplate Voltage @ 50 Hz
230/460V AC
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
NEMA Design Class
B
Nameplate RPM @ 50 Hz
3,510 RPM
Number of Speeds
1
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 60 Hz
223.0 A
Insulation Class
F
Application
General Purpose

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 200 HP, Nameplate RPM 1790 rpm, Frame 445T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 223.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Listed
