Shop MARATHON

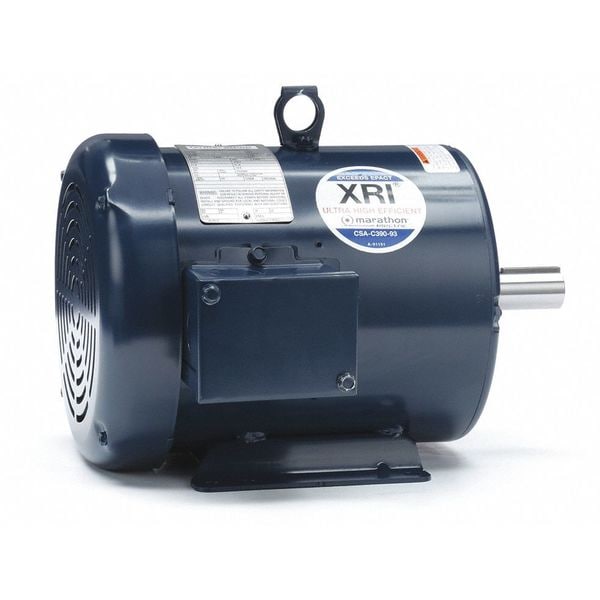

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 182TTFBD6039

  • Zoro # G5583751

product price:
$
617.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1,770
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
182TTFBD6039
Zoro #
G5583751
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
3
Nameplate RPM
1,770
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.9 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-208V AC, 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Bearing Protection
Shaft Slingers
Product Type
General Purpose Motor
Bearing Type
Ball
Full Load Current @ 60 Hz
8.9 A
Inverter Rating
Inverter Rated
Number of Speeds
1
Shaft Design
Keyed
Insulation Class
F
Bearing Protection Type
Shaft Slingers
Nameplate RPM @ 50 Hz
3,520 RPM
Nameplate Voltage @ 50 Hz
190/380V AC
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Frame Material
Steel

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,770, Frame 182T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1701-1800, CE, CSA (LR2025), UL (E49747)
