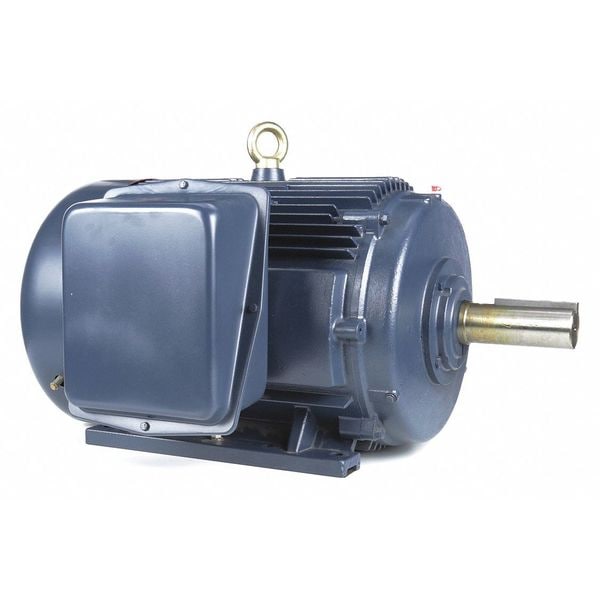

Three-Phase General Purpose Motor, 75 HP, 405T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM

  • Mfr # 405TTFCD6086

  • Zoro # G9875582

product price:  $10,034.67
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
75
Nameplate RPM
1188 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
178.0/89.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405TTFCD6086
Zoro #
G9875582
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
31 1/2 in
Overall Length
38 3/4 in
Shaft Dia.
2 7/8 in
Shaft Length
7 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
2 7/8 in
Frame Size
405T

Details

Item
General Purpose Motor
HP
75
Nameplate RPM
1188 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
178.0/89.0 A
Frame
405T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.5 %
Standards
CSA Certified, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Conduit Box
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Weight
1,304 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Capacitor Required
No
Inverter Rating
Inverter Rated
Bearing Type
Ball
NEMA Design Class
B
Nameplate Voltage @ 50 Hz
208-230/460V AC
Number of Speeds
1
Full Load Current @ 60 Hz
178.0/89.0 A
Nameplate RPM @ 50 Hz
956 RPM
Application
General Purpose
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 1188 rpm, Frame 405T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 178.0/89.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1,101-1,200
