Shop DAYTON

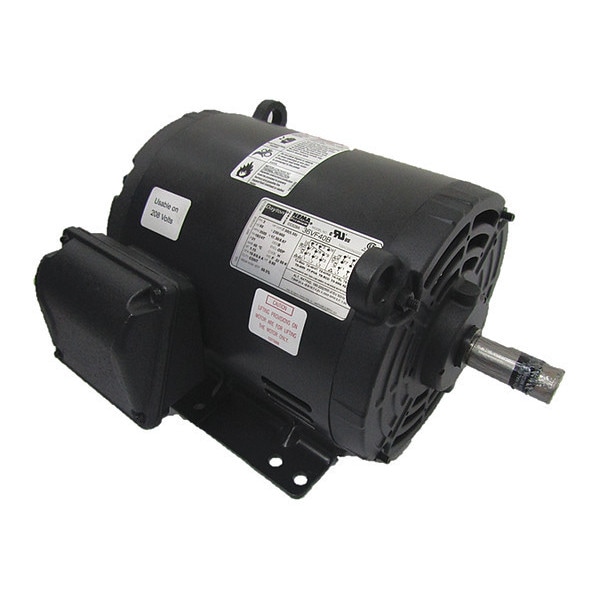

Three-Phase General Purpose Motor, 7 1/2 HP, 182/4T Frame, 230/460V AC Voltage, 3500 Nameplate RPM

  • Mfr # 36VF40

  • Zoro # G1578635

product price:  $786.99
/ea
Free Shipping & Returns

Key Features

HP
7 1/2
Nameplate RPM
3500
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
17.3/8.6 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36VF40
Zoro #
G1578635
UPC #
190735275726
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 7/16 in
Overall Length
15 3/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Body Diameter
8.11 in
Shaft Diameter
1 1/8 in
Frame Size
182-4T

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
3500
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
17.3/8.6 A
Frame
182/4T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
Shaft Key
Footnotes
2,15,54
Inverter Rated
Yes
Duty Cycle
Continuous
Capacitor Required
No
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency
Mounting Position
Horizontal
NEMA Design Class
B
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Shaft Design
Keyed
Number of Speeds
1
Usable @ 208V
Not Usable at 208V
Insulation Class
F
Frame Material
Steel
Application
General Purpose
Full Load Current @ 60 Hz
17.9/8.97 A
Conduit Box Location
Exterior
Inverter Rating
Inverter Rated
Bearing Protection Type
No Protection
Ambient Temperature - Maximum
40 Degrees C
Usable @ 200V
Not Usable at 200V
Bearing Lubrication Type
Permanently Lubricated
Manufacturers Warranty
1 yr
Variable Torque Rating
1000:1
Weight
28 kg

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3500, Frame 182/4T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17.3/8.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
