  11. Three-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1760 rpm Nameplate RPM

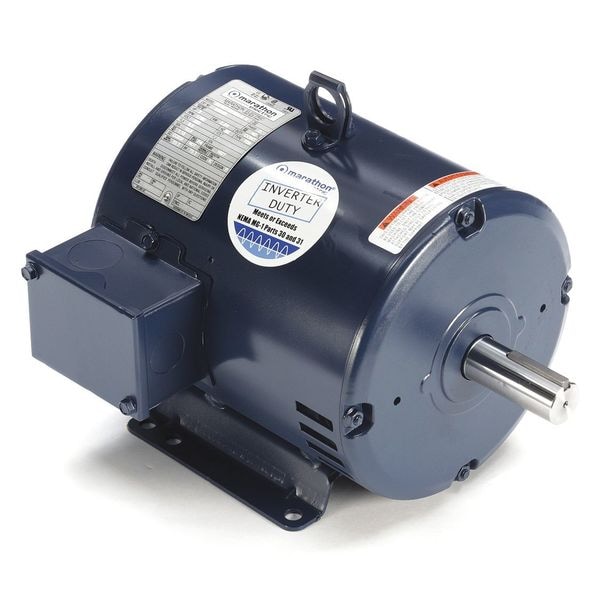

Marathon Three-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1760 rpm Nameplate RPM 182TTDBD6039 - main

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # 182TTDBD6039

  • Zoro # G7435298

product price: $569.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1760 rpm
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
9.5 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
182TTDBD6039
Zoro #
G7435298
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 3/8 in
Overall Length
13 3/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 13/16 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1760 rpm
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
9.5 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-208V AC, 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA (LR2025), UL (E49747)
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Yes
Usable @ 208V
No
Duty Cycle
Continuous

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1760 rpm, Frame 182T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 9.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA (LR2025), UL (E49747)
