Shop CENTURY

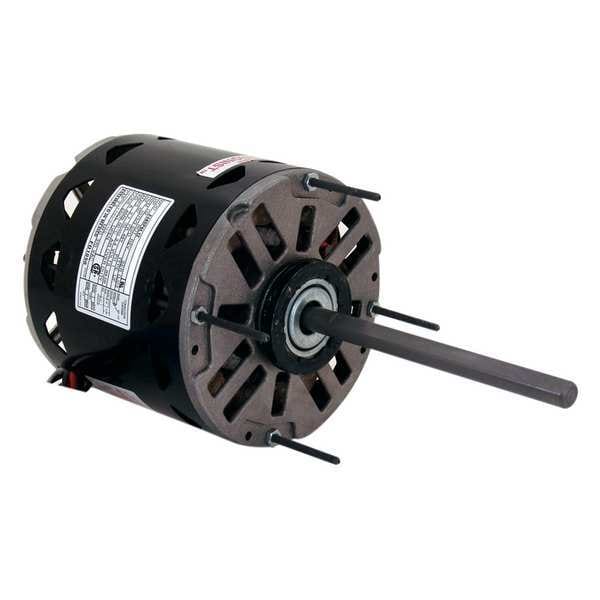

Motor, PSC, 1/2 HP, 1625,208-230V, 48Y, OAO

  • Mfr # FD1054
  • Zoro # G0406384
product price:
$
256.99
/ea
Free Shipping & Returns

Key Features

Hz
60 Hz
Motor Enclosure Design
Open Air-Over
Motor Shaft Design
Flat
Mounting Stud Location
4/Shaft End
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FD1054
Zoro #
G0406384
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/4 in
Shaft Length
6 7/16 in
Length Less Shaft
6 1/8 in
Stud Size
#8-32
Lead Length
26 in
Overall Length
12 1/16 in
Body Diameter
5.6 in
Frame Size
48Y
Resilient Ring Diameter
2 1/4 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
12 1/16 in
Length
12 1/16 in

Details

Hz
60 Hz
Motor Enclosure Design
Open Air-Over
Motor Shaft Design
Flat
Mounting Stud Location
4/Shaft End
Includes
Belly Band, Resilient Mounting Ring
Motor Mounting Type
Ring/Stud
Phase
Single
HP
1/2
Motor Mounting Position
All Angle
Motor Sub Application
Direct Drive Fan/Blower
Motor Application
HVAC/R
Motor Service Factor
1
Full Load Amps
2.08 A
Motor Bearings
Ball
Application
Fan/Blower
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Max. Ambient Temp.
40 Degrees C
Item
Fan and Blower Motor
Voltage
208V AC to 230V AC
Ins. Class
A
No. of Speeds
3
Nameplate RPM
1,625
RPM Range
1,601-1,700
Duty
Continuous
Ring to Ring Center
5 11/16 in
Motor Design
Permanent Split Capacitor
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CW/CCW
Frame
48Y
Capacitor Required
Capacitor Not Included
Motor Thermal Protection
Auto
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Weight
17 lb
Mounting Holes
(4) #8-32
Number of Shafts
1
Stud Quantity
4
Mounting
Stud
Number of Speeds
3
Shaft Design
Flat
Drive Type
Direct Drive
Product Type
Fan and Blower Motor
Mounting Position
All Angle
Sub Application
General Purpose
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Full Load Current @ 60 Hz
2.08 A
Insulation Class
A
Bearing Type
Ball
Wattage
370 W
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 208-230V AC, 2.08 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
