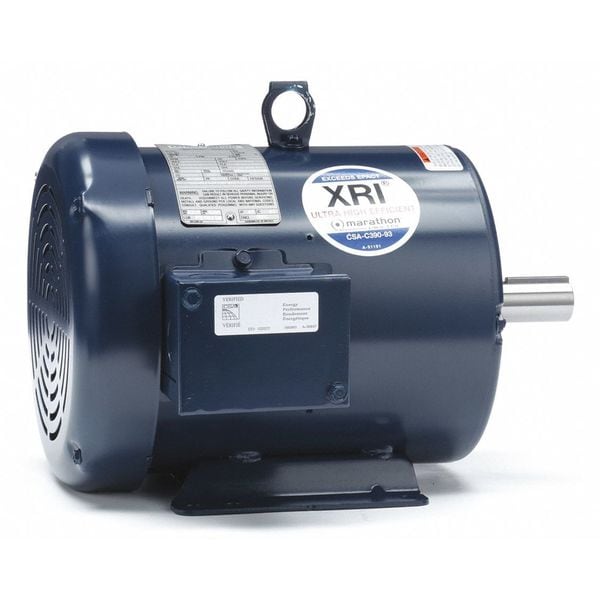

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 182TTFBD6027

  • Zoro # G5672107

product price:
$
672.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4-7.8/3.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTFBD6027
Zoro #
G5672107
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 3/16 in
Overall Length
14 in
Shaft Dia.
1 1/8 in
Shaft Length
2 13/16 in
Manufacturers Warranty Length
1 yr
Frame Size
182T
Shaft Diameter
1 1/8 in
Wire Rope Length
14 in
Length
14 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4-7.8/3.9 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
87.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
HP @ 50Hz
3 hp
RPM @ 50Hz
1770 rpm
Bearing Protection
Shaft Slingers
Voltage @ 50Hz
230/460
Usable @ 200V
Not Usable at 200V
Service Factor @ 50Hz
1.15
Full Load Amps @ 50Hz
8.4-7.8/3.9 A
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Nameplate RPM @ 50 Hz
3,500 RPM
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
1 yr
Frequency
60/50 Hz
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 50 Hz
8.4-7.8/3.9 A
Nameplate Voltage @ 50 Hz
208-230/460V AC
Full Load Current @ 60 Hz
8.4-7.8/3.9 A
Nameplate Service Factor @ 60 Hz
1.15
Bearing Protection Type
Shaft Slingers
Insulation Class
F
Application
General Purpose
Product Type
General Purpose Motor
Nameplate Horsepower @ 50 Hz
3 hp
Frame Material
Steel
Inverter Rating
Inverter Rated
Number of Speeds
1
Bearing Type
Ball
Nameplate Service Factor @ 50 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,770, Frame 182T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.4-7.8/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1701-1800
