  11. Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM

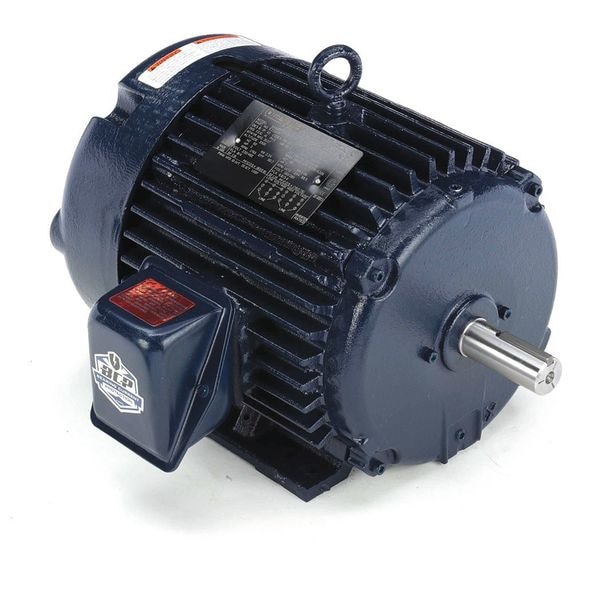

Marathon Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM 182TTFCD6070 - main

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM

  • Mfr # 182TTFCD6070

  • Zoro # G9072226

product price: $763.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1765 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
182TTFCD6070
Zoro #
G9072226
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 1/8 in
Overall Length
15 7/8 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1765 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
82.5 %
Standards
CSA, UL
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
AEGIS SGR Bearing Protection Rings
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
No
RPM @ 50Hz
1765 rpm
Bearing Protection
AEGIS(R) Rings
Usable @ 200V
No
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
Full Load Amps @ 50Hz
8/4 A
Voltage @ 50Hz
230/460
HP @ 50Hz
3 hp

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1765 rpm, Frame 182T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1701-1800, CSA, UL
