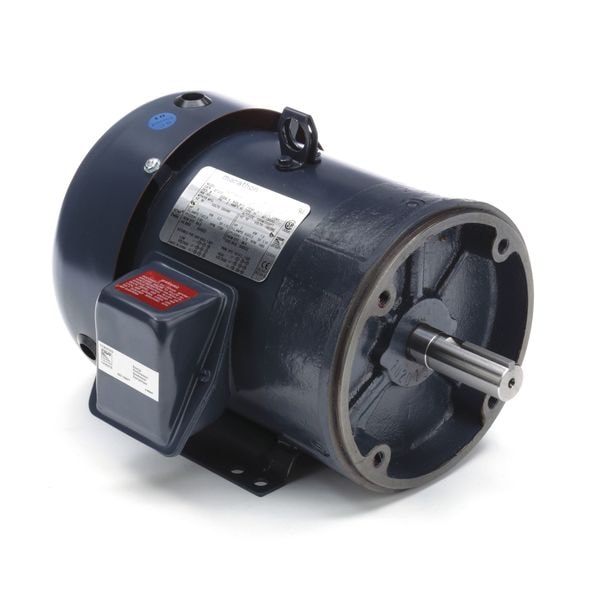

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM

  • Mfr # 182TTFBD6028

  • Zoro # G5820884

product price:
$
569.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1762 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTFBD6028
Zoro #
G5820884
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 1/8 in
Overall Length
15 7/8 in
Shaft Dia.
1 1/8 in
Shaft Length
2 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 1/8 in
Frame Size
182TC
Wire Rope Length
15 7/8 in
Length
15 7/8 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1762 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
Frame
182TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Weight
87 lb
NEMA Design
A
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Inverter Rating
Inverter Rated
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Shaft Design
Keyed
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
A
Full Load Current @ 60 Hz
8.0/4.0 A
Nameplate RPM @ 50 Hz
1,775 RPM
Nameplate Voltage @ 50 Hz
230/460V AC
Frequency
60 Hz
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Product Type
General Purpose Motor
Insulation Class
F

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1762 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
