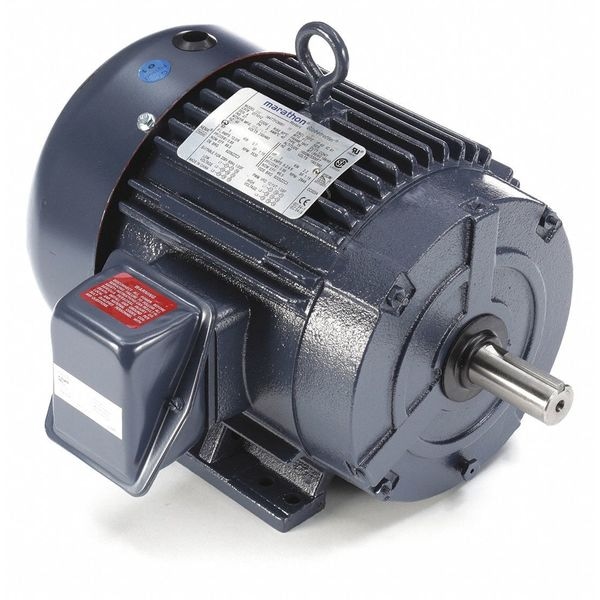

Marathon Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3525 rpm Nameplate RPM 184TTFCD6001 - main

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3525 rpm Nameplate RPM

  • Mfr # 184TTFCD6001

  • Zoro # G5614831

product price:  $810.99
/ea
Sold in multiples of 2 for $1,621.98
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
3525 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.4/6.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTFCD6001
Zoro #
G5614831
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 5/16 in
Overall Length
16 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Frame Size
184T
Shaft Diameter
1 1/8 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
3525 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.4/6.2 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, UL
CC Number
CC003A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
A
Bearing Protection
Shaft Slingers
Weight
94 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Inverter Rating
Inverter Rated
Shaft Design
Keyed
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
A
Nameplate Voltage @ 50 Hz
190/380V AC, 220/415V AC
Bearing Protection Type
Shaft Slingers
Insulation Class
F
Product Type
General Purpose Motor
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Nameplate RPM @ 50 Hz
2770/2800 RPM
Full Load Current @ 60 Hz
12.4/6.2 A
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3525 rpm, Frame 184T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, UL
