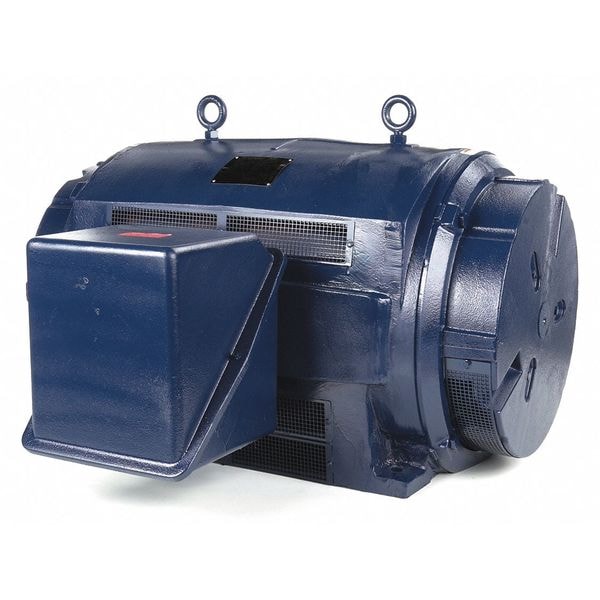

Three-Phase General Purpose Motor, 500 HP, 449TS Frame, 460V AC Voltage, 3572 rpm Nameplate RPM
Mfr # 449TSTDN16005
Zoro # G9875862
product price:Â $29,698.99
/ea
Additional $390.00 delivery surcharge applies per item.
Key Features
HP
500
Nameplate RPM
3572 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
538.0 A
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
449TSTDN16005
Zoro #
G9875862
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
39 1/2 in
Overall Length
44 1/2 in
Shaft Dia.
2 3/8 in
Shaft Length
5 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
2 3/8 in
Frame Size
449TS
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 500 HP, Nameplate RPM 3572 rpm, Frame 449TS, Voltage 460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 538.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 96.2 Percent, Continuous Duty, 3001-3600
