Shop MARATHON

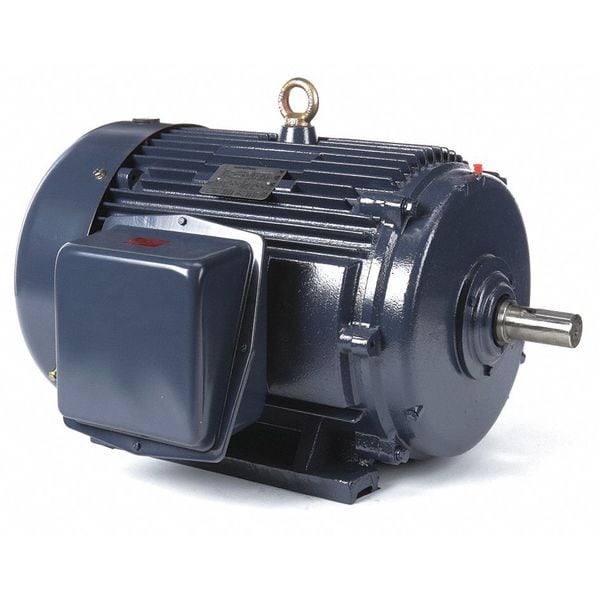

Three-Phase General Purpose Motor, 60 HP, 364TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM

  • Mfr # 364TSTFCD6001

  • Zoro # G9875722

product price:
$
5,896.74
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

HP
60
Nameplate RPM
3568 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
135.0/67.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
364TSTFCD6001
Zoro #
G9875722
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
60
Nameplate RPM
3568 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
135.0/67.5 A
Frame
364TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93.6 %
Standards
CSA Certified, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Conduit Box
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
897 lb
Capacitor Required
No
Inverter Rating
Inverter Rated
Frequency
60 Hz
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Application
General Purpose
Insulation Class
F
Manufacturers Warranty
1 yr
Nameplate RPM @ 50 Hz
3,575 RPM
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Full Load Current @ 60 Hz
135.0/67.5 A
Nameplate Voltage @ 50 Hz
200/400V AC

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 3568 rpm, Frame 364TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 135.0/67.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600
