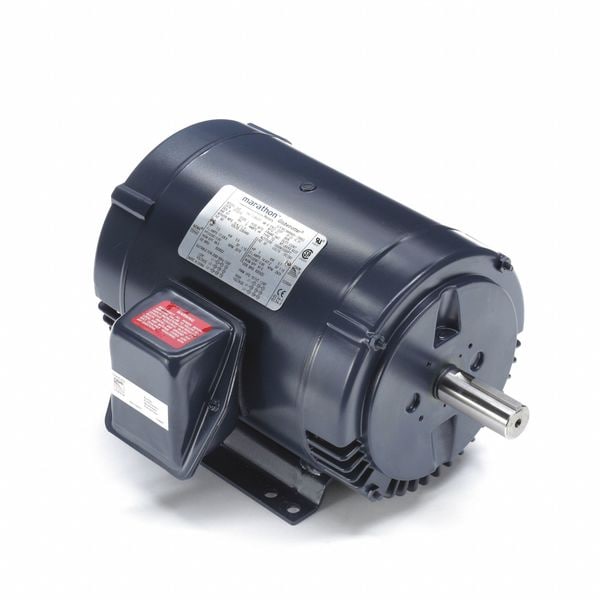

Marathon Three-Phase General Purpose Motor, 7 1/2 HP, 184T Frame, 208-230/460 & 190/380 V AC Voltage 184TTDBD6001 - main

Three-Phase General Purpose Motor, 7 1/2 HP, 184T Frame, 208-230/460 & 190/380 V AC Voltage

  • Mfr # 184TTDBD6001

  • Zoro # G5798091

product price:  $744.99
/ea
Free Shipping & Returns

Key Features

HP
7 1/2
Nameplate RPM
3510 rpm
Voltage
208-230/460 & 190/380 V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
184TTDBD6001
Zoro #
G5798091
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/2 in
Overall Length
13 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
3510 rpm
Voltage
208-230/460 & 190/380 V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
90.2 %
Standards
CSA, UL
CC Number
CC003A
Inverter Rated
Yes
Includes
Conduit Box
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 208V
Yes
NEMA Design
A
Usable @ 200V
No
Weight
98 lb
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

The MARATHON MOTORS - 184TTDBD6001 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy for use in various industrial and commercial applications. It's versatile enough to be used across different sectors including manufacturing lines and HVAC systems.

Key Features of the MARATHON MOTORS - 184TTDBD6001:

  • CC Number: The unique identifier assigned by EASA for tracking based on design, specifications, and performance characteristics.
  • Duty Cycle: The product is designed for continuous operation, as per manufacturer specifications.
  • Frame: The structural component that houses and supports the internal parts of the motor with standard size and design for compatibility.
  • Full Load Amps: The product draws a maximum current of 18.4/9.2 A under specified conditions; users should verify compatibility with their power supply.
  • NEMA Premium(R) Rated: Acknowledges that this motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Inverter Rated: This motor is compatible with variable frequency drives, which can offer control over speed and torque according to the user's application needs within the specified ranges."
