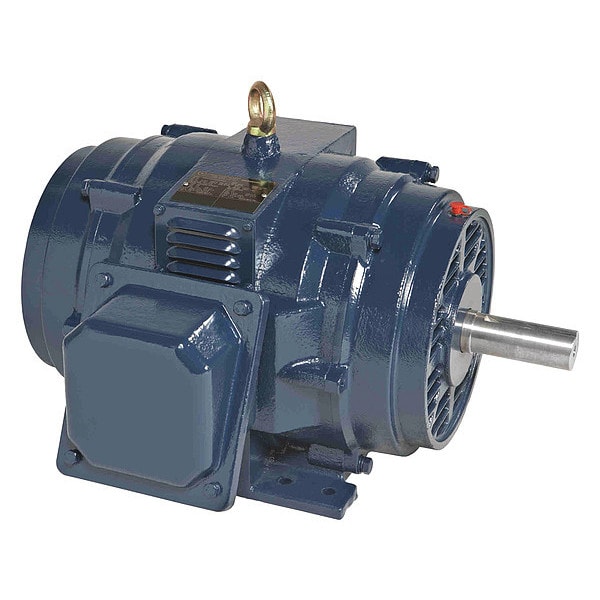

Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM

  • Mfr # 254TTDBD6076
  • Zoro # G4768491
product price:
$
1,512.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

HP
7 1/2
Nameplate RPM
1182 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
20.2/10.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
254TTDBD6076
Zoro #
G4768491
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1182 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
20.2/10.1 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
90.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Weight
230 lb
Duty Cycle
Continuous
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Inverter Rating
Inverter Rated
Application
General Purpose
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
190/380V AC
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Full Load Current @ 60 Hz
20.2/10.1 A
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Number of Speeds
1
Bearing Type
Ball
Nameplate RPM @ 50 Hz
1,770 RPM
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Nameplate Voltage @ 60 Hz
230/460V AC
Nameplate RPM @ 60 Hz
1,165 RPM
Nameplate Horsepower @ 60 Hz
7 1/2 hp

Dimensions

Length Less Shaft
18 5/8 in
Overall Length
22 5/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 5/8 in
Frame Size
254T
Wire Rope Length
22 5/8 in
Length
22 5/8 in

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1182 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 20.2/10.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
