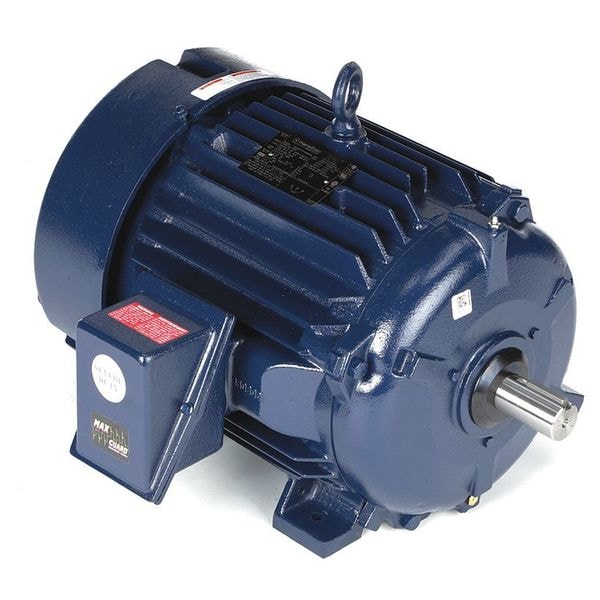

Three-Phase Severe Duty Motor, 25 hp HP, 284TS Frame, 460V AC Voltage, 3,555 RPM Nameplate RPM
Mfr # 284TSTFCD6501
Zoro # G9943771
product price:Â
$
3,040.99
/ea
Additional $160.00 delivery surcharge applies per item.
Key Features
HP
25 hp
Nameplate RPM
3,555 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
30.0 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 284TSTFCD6501
- Zoro #
- G9943771
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 21 13/16 in
- Overall Length
- 25 1/4 in
- Shaft Dia.
- 1 5/8 in
- Shaft Length
- 3 7/16 in
- Lead Length
- 3" to 8"
- Wire Rope Length
- 25 1/4 in
- Frame Size
- 284TS
- Shaft Diameter
- 1 5/8 in
- Length
- 25 1/4 in
Description
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 3,555 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 30.0 A, 284TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
