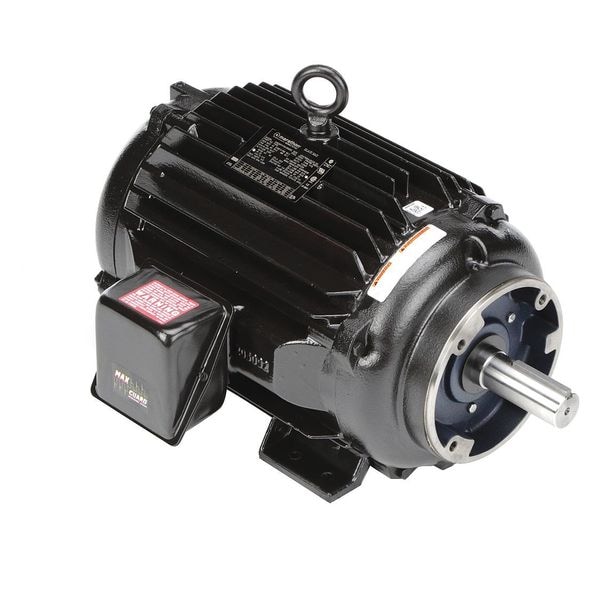

Vector Motor, 20 HP, 59.5 lb-ft, 575V
Mfr # 256THTNA7036
Zoro # G9873832
product price:Â $5,399.99
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
20
Torque
59.5 ft-lb
Nameplate RPM
1,770
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
256THTNA7036
Zoro #
G9873832
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1 5/8 in
Shaft Length
3 3/4 in
Overall Length
27 1/8 in
Length Less Shaft
23 3/8 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 20 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 575V AC, Full Load Amps 20.8 A, 256TC Frame, Torque 59.5 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
