Shop DAYTON

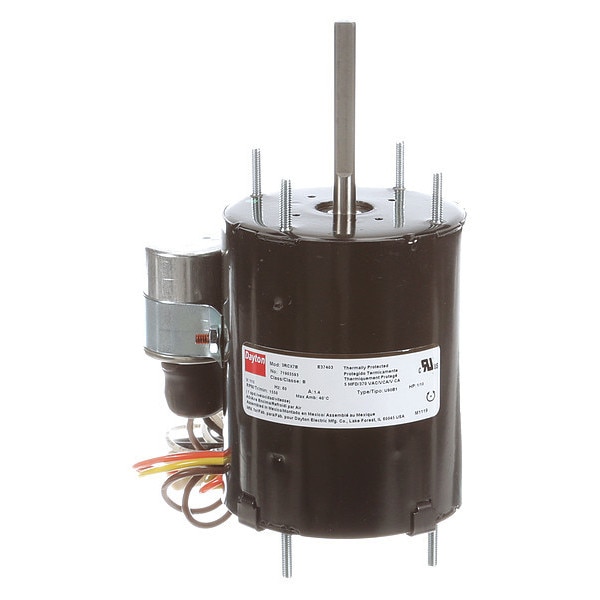

HVAC Motor, 1/10 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71903593M

  • Zoro # G0264293

product price:
$
117.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/10
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71903593M
Zoro #
G0264293
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 1/4 in
Shaft Dia.
5/16 in
Shaft Length
2 1/2 in
Cord Length
20 in
Body Dia.
3 5/16 in
Body Diameter
3.3 in
Overall Length
6 21/32 in
Shaft Diameter
5/16 in
Frame Size
3.3
Wire Rope Length
6 21/32 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/10
RPM Range
1,501-1,600
Motor Thermal Protection
Auto
Motor Service Factor
1
Application
Replaces 1/10 hp PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
Mounting Stud Location
4/Both Ends
Mounting Pattern
2 x 2
Motor Bearings
Ball
Capacitor Required
Capacitor Included
Motor Application
HVAC/R
Motor Mounting Type
Ring/Stud
Item
HVAC Motor
Motor Shaft Design
Flat
Stud/Base Mtg. Pattern
2 in x 2 in
Motor Design
Permanent Split Capacitor
Ins. Class
B
Hz
60 Hz
Number of Shafts
1
Motor Sub Application
Direct Drive Fan/Blower
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Rotation
CW/CCW
Frame
3.3
Duty
Continuous
Phase
Single
Full Load Amps
1.3 A
No. of Speeds
1
Includes
5 MFD 370VAC Capacitor
Standards
CSA Certified (244617), UL Recognized (E37403)
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Mounting Stud Pattern
2 in x 2 in
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Shaft Design
Flat
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Wattage
75 W
Full Load Current @ 60 Hz
1.3 A
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Drive Type
Direct Drive
Insulation Class
B

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.3 A Full Load Amps, 3.3 Frame, Output Watts 75 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
