Shop MARATHON

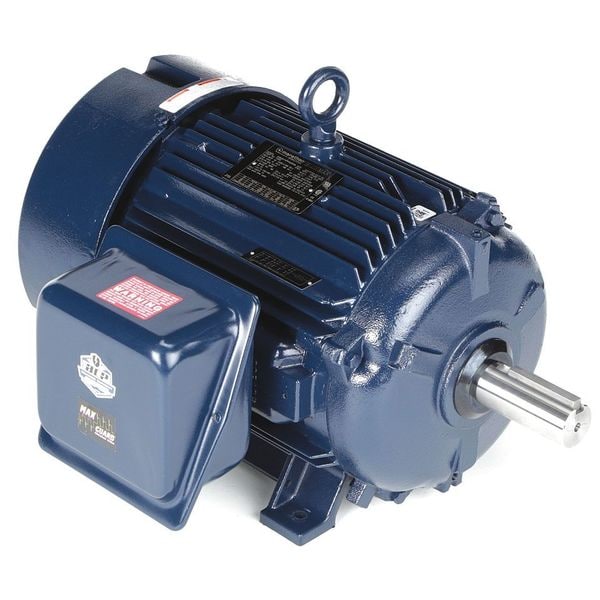

Vector Motor, 3-Phase, 25HP, 230/460V

  • Mfr # 284THFPA8028
  • Zoro # G9922997
product price:
$
5,902.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
284THFPA8028
Zoro #
G9922997
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
28 9/16 in
Shaft Dia.
1 7/8 in
Shaft Length
4 13/16 in
Encoder Shaft Dimensions
1 in x 1 3/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 7/8 in
Frame Size
284T
Encoder Shaft Diameter
1 in
Encoder Shaft Length
1 3/4 in
Wire Rope Length
28 9/16 in
Length
28 9/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
25
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
284T
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Encoder Acceptable
Yes
Motor Shaft Design
Keyed
Motor Service Factor
1
Standards
CE, CSA, UL Recognized
Finish
Enamel
Ambient Temperature
40 Degrees C
Insulation Feature
Class F
Nominal Efficiency
91.7 %
Duty
Continuous
RPM Range
1,701-1,800
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Bearings
Ball
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Phase
Three
Motor Efficiency Group
Energy Efficient
Motor Mounting Type
Rigid Base
Max. Operating Frequency
90 Hz
Warranty
3 yr
Ins. Class
H
Motor Application
Crane
NEMA Design
B
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Frame Material
Cast Iron
Encoder Shaft
1 in x 1-3/4 in
Base
Rigid
Full Load Amps
63.0/31.5 A
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Max. Ambient Temp.
104 Degrees F
Weight
393 lb
Duty Cycle
Continuous
Conduit Box Location
Exterior
Conduit Box Position
F1, F2
Manufacturers Warranty
3 yr
Ambient Temperature - Maximum
40 Degrees C
Frame Finish
Enamel-Coated
Maximum Speed
1,800 RPM
Full Load Current @ 60 Hz
63.0/31.5 A
Frequency
60 Hz
Inverter Rated
Inverter Rated
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Shaft Design
Keyed
Maximum Operating Frequency
90 Hz
NEMA Design Class
B
Product Type
Vector Motor
Insulation Class
H
Efficiency Rating
NEMA Standard Efficiency

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 63.0/31.5 A, 284T Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
