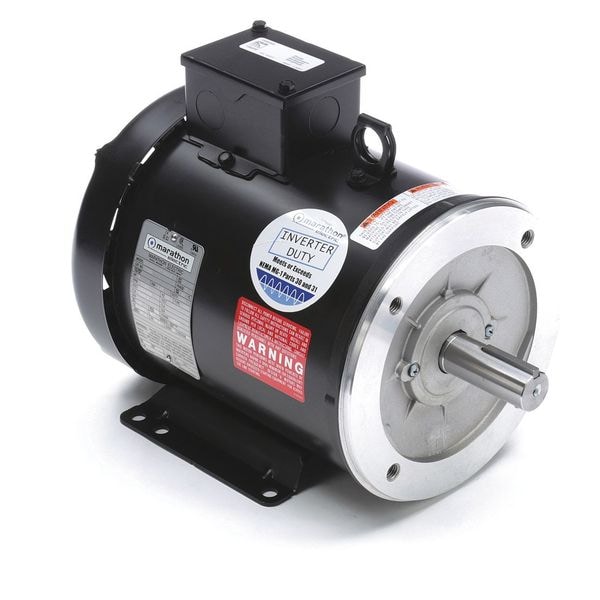

Vector Motor, 3 HP, 9 ft.-lb., 230/460V

  • Mfr # 182THFW7729

  • Zoro # G5606605

product price:  $1,212.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3
Torque
9 ft-lb
Nameplate RPM
1,765
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182THFW7729
Zoro #
G5606605
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
14 in
Shaft Dia.
1 1/8 in
Shaft Length
2 7/8 in
Length Less Shaft
11 1/16 in
Frame Size
182TC
Shaft Diameter
1 1/8 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
3
Torque
9 ft-lb
Nameplate RPM
1,765
Speed Range
1,000:1
Max. Speed
4,200 RPM
Frame
182TC
Voltage
230/460V AC
Motor Thermal Protection
None
Nominal Efficiency
87.5 %
Motor Bearings
Ball
Motor Mounting Type
Rigid Base
Encoder Acceptable
No
Duty
Continuous
Base
Bolt On
Motor Frame Material
Steel
Finish
Black
Motor Application
Crane
NEMA Design
A
Hz
60 Hz
Insulation Feature
CR200 Magnet Wire Class H
Phase
Three
Ambient Temperature
40 Degrees C
Motor Efficiency Group
Energy Efficient
Full Load Amps
8.4/4.2 A
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
Encoder Shaft
None
Standards
CE, UL Recognized
Max. Operating Frequency
120 Hz
Motor Service Factor
1
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
RPM Range
1,701-1,800
Frame Material
Steel
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Position
Horizontal
Ins. Class
H
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
104 Degrees F
Usable @ 208V
Not Usable at 208V
Weight
64 lb
Duty Cycle
Continuous
Conduit Box Location
Exterior
No. of Speeds
1
Conduit Box Position
F3
NEMA Design Class
A
Efficiency Rating
NEMA Energy Efficient
Nameplate Service Factor @ 60 Hz
1
Maximum Operating Frequency
120 Hz
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
H
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
8.4/4.2 A
Maximum Speed
4,200 RPM
Frequency
60 Hz
Inverter Rated
Inverter Rated
Product Type
Vector Motor
Bearing Type
Ball
Shaft Design
Keyed

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.4/4.2 A, 182TC Frame, Torque 9 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
