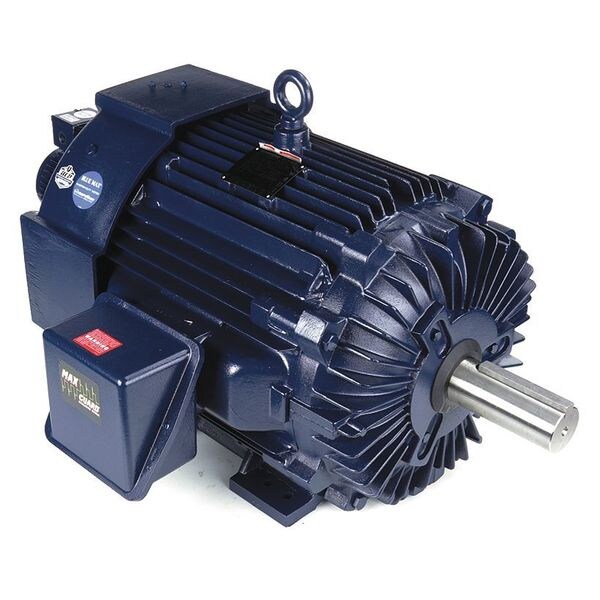

Vector Motor, 3-Phase, 125HP, 460V
Mfr # 444THFN8046
Zoro # G9922857
product price: $27,666.24
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
125
Nameplate RPM
1,785
Speed Range
2,000:1
Max. Speed
1,200 RPM
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
444THFN8046
Zoro #
G9922857
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
54 7/8 in
Shaft Length
8 3/4 in
Shaft Dia.
3 3/8 in
Manufacturers Warranty Length
3 yr
Encoder Shaft Dimensions
1 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 125 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 460V AC, Full Load Amps 138 A, 444T Frame, Max. Speed 1,200 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
