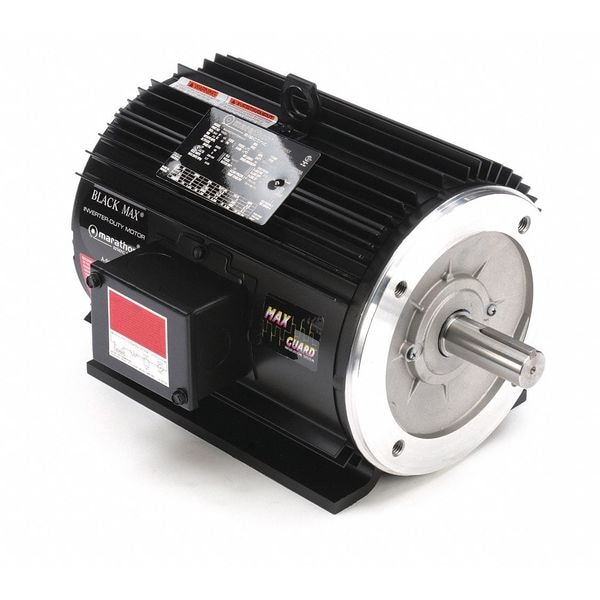

Vector Motor, 5 HP, 14.9 ft.-lb., Ball
Mfr # 184THTY7726
Zoro # G2030500
product price: $2,170.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
5
Torque
14.9 ft-lb
Nameplate RPM
1,760
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
184THTY7726
Zoro #
G2030500
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 5/8 in
Shaft Dia.
1 1/8 in
Overall Length
17 11/16 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.4/6.7 A, 184TC Frame, Torque 14.9 ft-lb, Max. Speed 3,600 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
