Shop MARATHON

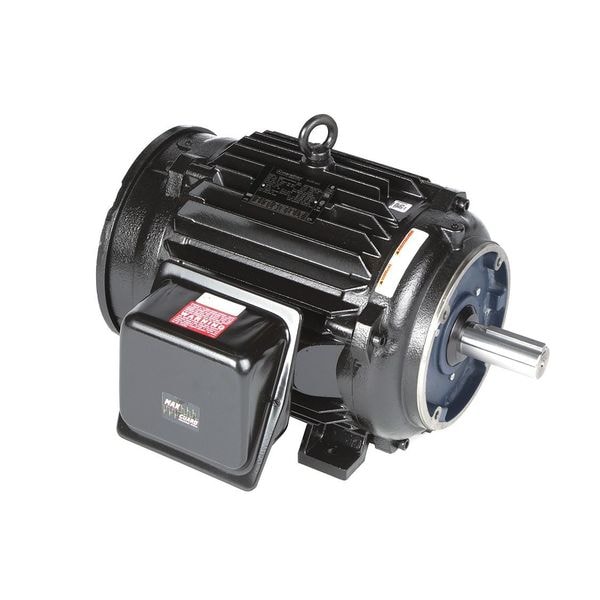

Vector Motor, 74.2 lb-ft, 25 HP, 230/460 V

  • Mfr # 284THTNA7026
  • Zoro # G2281133
product price:
$
5,660.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25
Torque
74.2 ft-lb
Nameplate RPM
1,770
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
284THTNA7026
Zoro #
G2281133
UPC #
-
Country of Origin
United States
Item
Vector Motor
Motor Design
Three-Phase
HP
25
Torque
74.2 ft-lb
Nameplate RPM
1,770
Speed Range
1,000:1
Max. Speed
1,800 RPM
Frame
284TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Motor Service Factor
1
Motor Frame Material
Cast Iron
Motor Bearings
Ball
Hz
60 Hz
Motor Shaft Design
Keyed
Ambient Temperature
40 Degrees C
RPM Range
1,701-1,800
Max. Operating Frequency
120 Hz
Motor Application
Crane
Ins. Class
F
Standards
CE, CSA, UL Recognized
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Mounting Position
Horizontal
Base
Rigid
Duty
Continuous
Finish
Black
NEMA Design
A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Frame Material
Cast Iron
Motor Mounting Type
Rigid Base
Insulation Feature
Patented MAX GUARD
Nominal Efficiency
93.6 %
Full Load Amps
62.0/31.0 A
Warranty
3 yr
Encoder Acceptable
Yes
Encoder Shaft
5/8 x 1-3/4 in
CC Number
CC003A
Motor Efficiency Group
NEMA Premium Efficient
Phase
Three
Motor Shaft Rotation
CW/CCW
Green Certification or Other Recognition
NEMA Premium(R) Rated
Max. Ambient Temp.
104 Degrees F
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
379 lb
No. of Speeds
1
Conduit Box Position
F1, F2
Maximum Operating Frequency
120 Hz
Mounting Position
Horizontal
Insulation Class
F
Inverter Rated
Inverter Rated
Product Type
Vector Motor
NEMA Design Class
A
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 60 Hz
62.0/31.0 A
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Manufacturers Warranty
3 yr
Shaft Design
Keyed
Frequency
60 Hz
Maximum Speed
1,800 RPM
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 62.0/31.0 A, 284TC Frame, Torque 74.2 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
