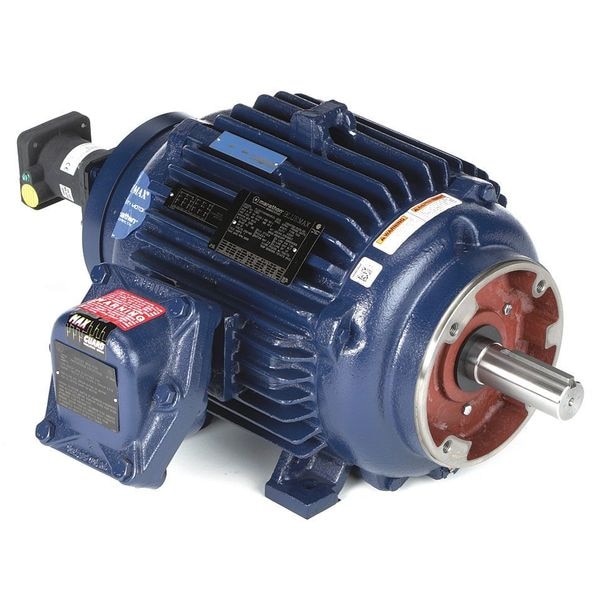

Vector Motor, 10 HP, 3600 rpm, 230/460V

  • Mfr # 254THEN8059

  • Zoro # G9922744

product price:  $11,904.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
10
Nameplate RPM
1,775
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
254THEN8059
Zoro #
G9922744
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
3 3/4 in
Overall Length
30 3/16 in
Shaft Dia.
1 5/8 in
Manufacturers Warranty Length
3 yr
Frame Size
254TC
Shaft Diameter
1 5/8 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
10
Nameplate RPM
1,775
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
254TC
Voltage
230/460V AC
Motor Thermal Protection
None
Motor Service Factor
1
Phase
Three
Insulation Feature
Max Guard
CC Number
CC003A
Duty
Continuous
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Ins. Class
F
Motor Shaft Design
Keyed
Finish
Blue
Encoder Shaft
1 in
Motor Mounting Type
Rigid Base
Full Load Amps
27.0/13.5 A
Motor Shaft Rotation
CW/CCW
Warranty
3 yr
Motor Efficiency Group
NEMA Premium Efficient
Standards
CL I GR C&D, CL II GR E, CSA, F&G, UL Listed
RPM Range
1,701-1,800
Base
Rigid
Encoder Acceptable
Yes
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
NEMA Design
A
Motor Application
Crane
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Ambient Temperature
40 Degrees C
Hz
60 Hz
Motor Bearings
Ball
Frame Material
Cast Iron
Nominal Efficiency
91.7 %
Max. Operating Frequency
120 Hz
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
Weight
376 lb
Usable @ 208V
Not Usable at 208V
Includes
BEI H38 Explosion Proof Encoder 1024 ppr
Conduit Box Location
Exterior
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Conduit Box Position
F1, F2
Insulation Class
F
Product Type
Vector Motor
Shaft Design
Keyed
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Maximum Speed
1,800 RPM
Bearing Type
Ball
Full Load Current @ 60 Hz
27.0/13.5 A
Manufacturers Warranty
3 yr
Maximum Operating Frequency
120 Hz
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Nameplate Service Factor @ 60 Hz
1
Inverter Rated
Inverter Rated
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
A

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 27.0/13.5 A, 254TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
