  11. Motor, 1/4 HP, OEM Replacement Brand: Thermal Transfer Replacement For: 66098
Fasco

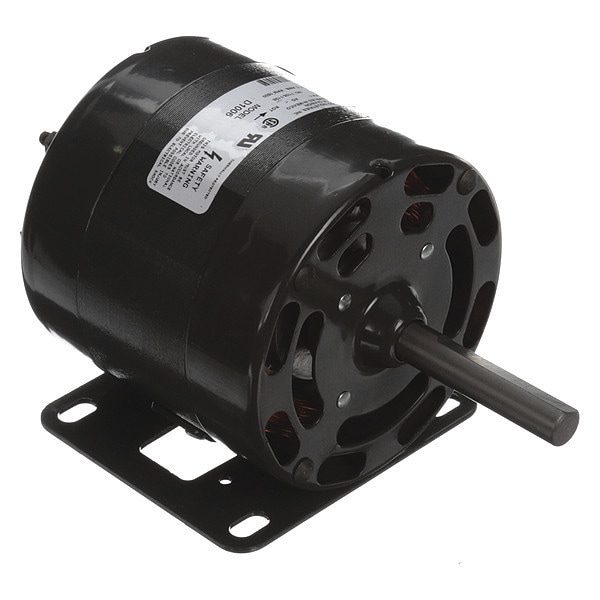

Motor, 1/4 HP, OEM Replacement Brand: Thermal Transfer Replacement For: 66098

Fasco Motor, 1/4 HP, OEM Replacement Brand: Thermal Transfer Replacement For: 66098 D1006
Hover or click to zoom Tap to zoom
$319.39
  • Frame: 4.4
  • HP: 1/4 HP
  • Item: Motor
See full product details
This item ships free.
Total: $319.39

Fasco #D1006 Specifications

  • Frame: 4.4
  • HP: 1/4 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Shaded Pole
  • Motor Enclosure Design: Open Air-Over
  • Motor Mounting Type: Rigid Base
  • Motor Shaft Rotation: Clockwise Shaft End
  • Motor Sub Application: Condenser Fan
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1600 rpm
  • No. of Speeds: 1
  • Number of Shafts: 1
  • OEM Replacement Brand: Thermal Transfer
  • Phase: 1
  • RPM Range: 1601-1700
  • Shaft Dia.: 1/2"
  • Shaft Length: 2-3/4"
  • Voltage: 115V
  • Motor Bearings: Sleeve
  • Replacement For: 66098
  • Ins. Class: B
  • Max. Ambient Temp.: 40 Degrees C
  • Length Less Shaft: 4 1/8 in
  • Duty: Air Over
  • Bolt Circle Dia.: 3 15/16 in
  • Full Load Amps: 7.2A
  • Body Dia.: 4-13/32"
  • Capacitor Required: No
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 6-7/8"
  • Standards: UL Recognized, CSA Certified
  • Motor Shaft Design: Flat
  • Hz: 60 Hz
  • Motor Service Factor: 1.00
  • Application: Fans and Blowers
  • Voltage Compatibility: 115V AC, 120V AC
  • Weight: 9 lb
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Country of Origin (subject to change): Mexico

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/4 HP, Nameplate RPM 1,600, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.2, 4.4 in Frame, OEM Replacement Brand Thermal Transfer, Replacement For 66098, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base
