Shop MCDONNELL & MILLER

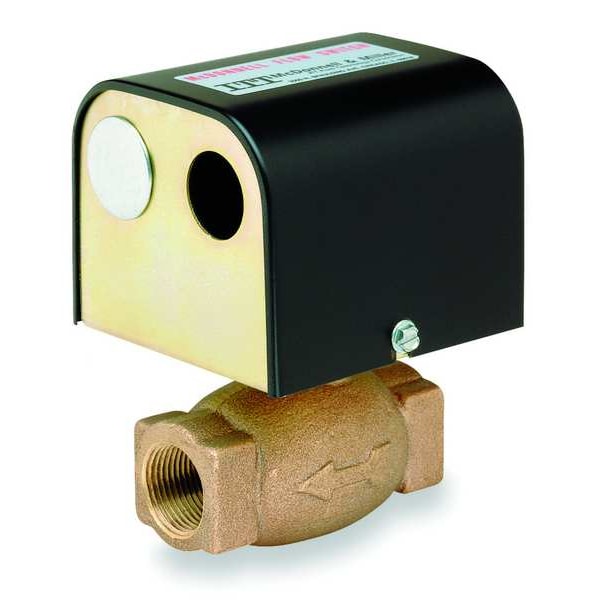

1" FNPT SPDT Snap Flow Switch 120/240VAC 15 gpm

  • Mfr # FS5-1

  • Zoro # G3327082

product price:
$
393.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1 FNPT
Switch Type
SPDT
Voltage
120/240VAC
Max. Pressure
150 psi
Max. Flow GPM
15 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FS5-1
Zoro #
G3327082
UPC #
751875043264
Country of Origin
United States

Dimensions

Connection Size (In.)
1 FNPT
Overall Length
3.2 in
For Pipe Size
1 in
Connection Size
1 in
Overall Height
5.1 in
Wire Rope Length
3.2 in
Length
3.2 in

Details

Switch Type
SPDT
Voltage
120/240VAC
Max. Pressure
150 psi
Max. Flow GPM
15 gpm
Item
Flow Switch
Max. Pressure (PSI)
150 psi
Switch Enclosure
NEMA 1
Min. Flow Rate (GPM)
1.5 gpm
Max. Fluid Temp. (F)
250 Degrees F
Max. HP
Not Available
Min. Fluid Temp. (F)
32 Degrees F
Min. Ambient Temp. (F)
32 Degrees
Float Switch Contact Form
SPDT
Type
General Purpose, Electrically Operated
Wetted Materials
Brass, BUNA, EPDM
Application
Alarms, Automatic Burners and Metering Devices, Motors, Signal Lights
Media Temperature - Minimum
32 Degrees F
Media Temperature - Maximum
250 Degrees F
Flow Rate - Maximum
1.5 gpm
Flow Rate - Minimum
1.5 gpm
Connection Type
NPT
Wetted Material
Brass, Buna-N, EPDM
Ambient Temperature - Minimum
32 Degrees F
Contact Rating (AC)
22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)
Ambient Temperature - Maximum
250 Degrees F
Housing Material
Brass
Set Point Configuration
Adjustable

Description

Flow Switch, Ambient Temperature - Maximum 250 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 1.5 gpm, Flow Rate - Minimum 1.5 gpm, For Pipe Size 1 in, Housing Material Brass, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F, Overall Height 5.1 in
