  9. 1" FNPT SPDT Snap Switch Flow Switch 2.5 gpm

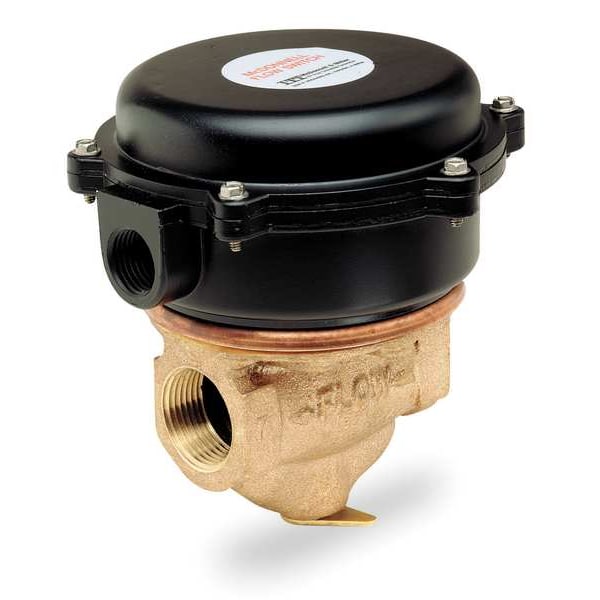

Mcdonnell & Miller 1" FNPT SPDT Snap Switch Flow Switch 2.5 gpm FS6-W-1 - main

1" FNPT SPDT Snap Switch Flow Switch 2.5 gpm

  • Mfr # FS6-W-1

  • Zoro # G3033344

product price: $631.71
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1 FNPT
Switch Type
SPDT
Max. Pressure
100 psi
Max. Flow GPM
2.5 gpm
Max. Pressure (PSI)
100 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FS6-W-1
Zoro #
G3033344
UPC #
751875041789
Country of Origin
United States

Dimensions

Connection Size (In.)
1 FNPT
Overall Length
5 in
For Pipe Size
1 in
Connection Size
1 in

Details

Switch Type
SPDT
Max. Pressure
100 psi
Max. Flow GPM
2.5 gpm
Item
Flow Switch
Max. Pressure (PSI)
100 psi
Min. Ambient Temp. (F)
32 Degrees
Max. Fluid Temp. (F)
225 Degrees F
Float Switch Contact Form
SPDT
Wetted Materials
Brass, Buna-N, Stainless Steel, Viton
Application
Water Treatment Systems, Cooling Systems for Electronic Circuits, Compressors, Booster Pumps, Bearings and other Applications that Need Instant Switching
Switch Enclosure
NEMA 4X
Type
High Sensitivity
Min. Fluid Temp. (F)
32 Degrees F
Min. Flow Rate (GPM)
0.12 gpm
Media Temperature - Maximum
225 Degrees F
Wetted Material
Brass, Buna-N, Stainless Steel, Viton
Connection Type
NPT
Set Point Configuration
Adjustable
Contact Rating (AC)
22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)
Media Temperature - Minimum
32 Degrees F
Flow Rate - Maximum
0.12 gpm
Ambient Temperature - Maximum
225 Degrees F
Ambient Temperature - Minimum
32 Degrees F
Flow Rate - Minimum
0.12 gpm

Description

Flow Switch, Ambient Temperature - Maximum 225 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 0.12 gpm, Flow Rate - Minimum 0.12 gpm, For Pipe Size 1 in, Media Temperature - Maximum 225 Degrees F, Media Temperature - Minimum 32 Degrees F, Overall Length 5 in, Phase -
