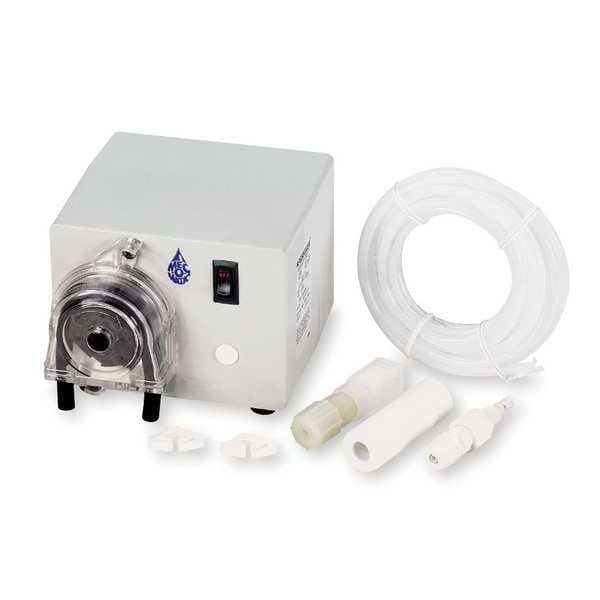

Metering Pump, 115V, 6 ft.

  • Mfr # UVSP12XRLLAUG19

  • Zoro # G7921986


product price: $441.99
/ea
Free Shipping & Returns

Key Features

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
12.00 gpd
Voltage
115
Max. Pressure - Pumps
25 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UVSP12XRLLAUG19
Zoro #
G7921986
UPC #
-
Country of Origin
United States

Dimensions

Height
5 5/8 in
Width
6 7/8 in
Cord Length
6 ft
Length
7 5/8 in
Overall Length
6.9 in
Overall Width
7.6 in
Overall Height
5.7 in
Discharge Connection Size
3/8 in
Intake Connection Size
3/16 in

Details

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
12.00 gpd
Voltage
115
Max. Pressure - Pumps
25 psi
Voltage - Pumps
115V AC
Phase - Pumps
1
Max. Viscosity - Pumps
300 cps
HP - Pumps
1/60 hp
Turn Down Ratio - Pumps
8:1
Max. Pressure
25 psi
Motor RPM
Variable
Suction Lift
4 ft
Min. Flow Rate
1.60 gpd
Phase
Single
Includes
Injection Point Fitting, Strainer, Tube
Hz
60
Tubing Material - Peristaltic Pumps
Norprene
Self-Priming
Yes
Body Material
Chemical Resistant Resin
Head and Fitting Material - Pumps
Resin
Pump Type
Peristaltic
Item
Chemical Metering Pump
Item - Chemical Metering Pumps
Chemical Metering Pump
cc/Min.
32 cc/min
Features
Nonclogging Design, Valveless
Tubing Material
Neoprene
Number of Feeds
Single Head
Max. Viscosity
300 cps
Standards
cETL, ETL, ETL Sanitary
Reproducibility
+/-2.0%
Media Temperature (Maximum)
104 Degrees F
Priming
Self-Priming
Discharge Connection Type
Tube
Pressure (Maximum)
25 psi
Viscosity (Maximum)
300 cps
Nameplate Voltage
120V AC
Ambient Temperature (Maximum)
104 Degrees F
Horsepower (Maximum)
1/60 hp
Frequency
60 Hz
Fitting Material
PVC
Chemical Compatibility
Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Oils, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Water
Intake Connection Type
Tube
Housing Material
Resin
Control Programs
Manual Control
Duty Cycle
Continuous
Motor Type
DC
Head Material
Polycarbonate
Degassing Valve Included
Yes
Flow Rate (Maximum)
12 gpd

Description

Chemical Metering Pump, Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10 Percent, Hydrochloric Acid 20 Percent, Hydrochloric Acid 30 Percent, Oils, Phosphoric Acid 40 Percent, Potassium Hydroxide 50 Percent, Sodium Hydroxide 20 Percent, Sodium Hypochlorite 10 Percent, Sodium Hypochlorite 20 Percent, Sodium Hypochlorite 5 Percent, Sulfuric Acid 10 Percent, Sulfuric Acid 20 Percent, Water, Control Programs Manual Control, Discharge Connection Size 3/8 in
