  6. 3" X 1" Non-Marking Rubber Performa Swivel Caster, No Brake, Loads Up To 140 lb

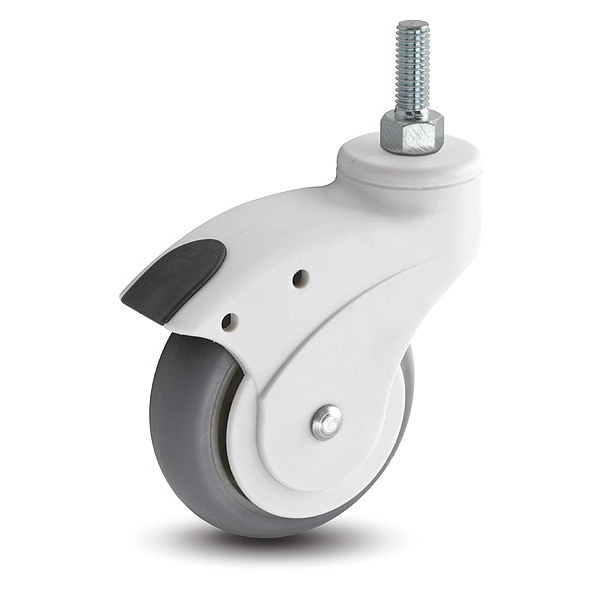

Medcaster 3" X 1" Non-Marking Rubber Performa Swivel Caster, No Brake, Loads Up To 140 lb OP03PRN100SWTS06 - main

3" X 1" Non-Marking Rubber Performa Swivel Caster, No Brake, Loads Up To 140 lb

  • Mfr # OP03PRN100SWTS06

  • Zoro # G8093839

product price:  $13.55
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Donut
Wheel Width
1 in
Mounting Height
109MM
Load Rating
140 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OP03PRN100SWTS06
Zoro #
G8093839
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 in
Mounting Height
109MM
Stem Length
1 in
Thread Size
16NC
Wheel Dia.
3 in
Overall Height
4 19/64 in
Caster Stem Size
1"-16 x 1 in
Stem Dia.
3/8 in

Details

Item
Hospital Threaded Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Donut
Load Rating
140 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Rubber Performa
Application
Iv Stands, Computer Carts
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Plain Bore (None)
Wheel/Tread Hardness Rating
Soft
Number of Wheels
1
Series
Optimus
Wheel/Tread Hardness
70(+/-5)
Swivel Lock Type
No Lock Included
Operating Temperature Range
-30°F to 175°F
Caster Mounting Type
Stem
Wheel/Tread Color
Gray
Wheel Core Material
Rubber
Core Color
Gray
Frame Finish
Unfinished
Swivel Raceway Type
Single Ball
Number of Mounting Holes
None
Caster Product Group
Swivel Caster
Frame Color
Black
Caster Sub-Type
Swivel
Operating Temperature - Minimum
-30 Degrees F
Load Capacity - Maximum
140 lb
Operating Temperature - Maximum
175 Degrees F
Wheel Hardness Rating
70 Shore A

Description

Stem Caster, Swivel Caster, 140 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 4 19/64 in Mounting Height, Ball, 1 In.-16 x 1 in Caster Stem Size, Threaded, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
