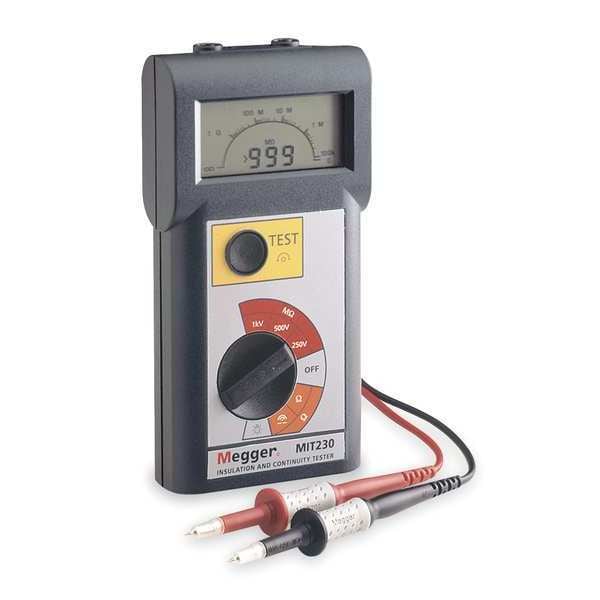

Megger Battery Operated Megohmmeter, 1000VDC MIT230 - main

Battery Operated Megohmmeter, 1000VDC

  • Mfr # MIT230

  • Zoro # G2181261

product price:  $802.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Carrying Case, Crocodile Clips, Test Lead Set
Insulation Resistance Range
10 kiloohm to 1 gigohm
Manufacturers Warranty Length
3 yr
Safety Rating
Cat III 600V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
MIT230
Zoro #
G2181261
UPC #
-
Country of Origin
United Kingdom

Dimensions

Manufacturers Warranty Length
3 yr
Manufacturer Warranty Length
3 yr
Battery Size
AA
Tool Length
7.7 in
Tool Width
3.9 in
Tool Height
1.6 in

Details

Item
Megohmmeter
Power Source
Battery
Includes
Carrying Case, Crocodile Clips, Test Lead Set
Insulation Resistance Range
10 kiloohm to 1 gigohm
Safety Rating
Cat III 600V
Features
Alkaline or Rechargeable Batteries, Live Circuit Warning (Voltage Display) and Test Inhibit
Output Test Voltage
250/500/1000V DC
Auto Ranging
Yes
Auto Power Off
Yes
Accuracy
+/-3% +/-2 Digits
Live Circuit Detection
0 to 600V AC/V DC
Resistance Range
0 to 100 ohm
Display
Digital LCD
Leakage Current Range
205 mA +10 mA to 5 mA
Calibration Certificate
Not Included
Remote Test Probe Included
No
Includes Batteries
Yes
Waterproof
No
Minimum Insulation Resistance
1 teraohm
Insulation Limit Alarm
Yes
Test Current
1 mA
Resistance Accuracy
+/-5% +/-2 digits
Maximum Operating Temperature
131 Degrees F
Pass/Fail Selection Limits
Yes
Minimum Operating Temperature
14 Degrees F
Operating Voltage
600V AC/DC
Number of Batteries Required
6
USB Data Download Included
No
Test Voltage
1,000V DC, 250V DC, 500V DC
Display Screen Type
LCD
Battery Chemistry
Alkaline
Minimum AC Voltage Measured
0 V
Greater Than 30V Warning
No
Live Circuit Voltage
Greater Than25V AC/DC
IP Rating
IP40
Insulation Resistance Resolution
0.01 ohm to 1,000 megaohm
Dustproof
No
Backlit Digital Display
No
Standards
BS 7671, VDE 0413 Part 1
Timed Ramp Voltage Test
Yes
Maximum Insulation Resistance
1 gigohm
Minimum DC Voltage Measured
25 V
Display Type
Digital
Maximum DC Voltage Measured
600 V
Parameters Measured
Continuity, Resistance
CAT Safety Rating
CAT III 600V
Maximum AC Voltage Measured
600 V
Testing Functions
Continuity, Insulation Resistance
PI/DAR Testing
Yes
Capacitance Auto Discharge
Yes
Bluetooth Compatible
No
Maximum Operating Temperature
131 Degrees F
Alert Type
Digital Display, Audible
Instrument Style
Handheld
Calibration Certificate Included
Traceable without Data
Live Circuit Voltage Measurement - Maximum
600 V AC/DC
Live Circuit Voltage Measurement - Minimum
25 V
Installation Tester Socket Region
EU, US
Data Output Type
No Output

Description

Megohmmeter, Backlit Digital Display No, Bluetooth Compatible No, CAT Safety Rating CAT III 600V, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning No, Includes Carrying Case, Crocodile Clips, Test Lead Set, Insulation Limit Alarm Yes, Maximum Insulation Resistance 1 gigohm, Minimum Insulation Resistance 1 teraohm, PI/DAR Testing Yes, Parameters Measured Continuity, Insulation Resistance
