- MFR #
- 3100D-3-FM-1-1-LCD
- Zoro #
- G3909866
- UPC #
- -
- Country of Origin
- Korea, Republic of
- Item

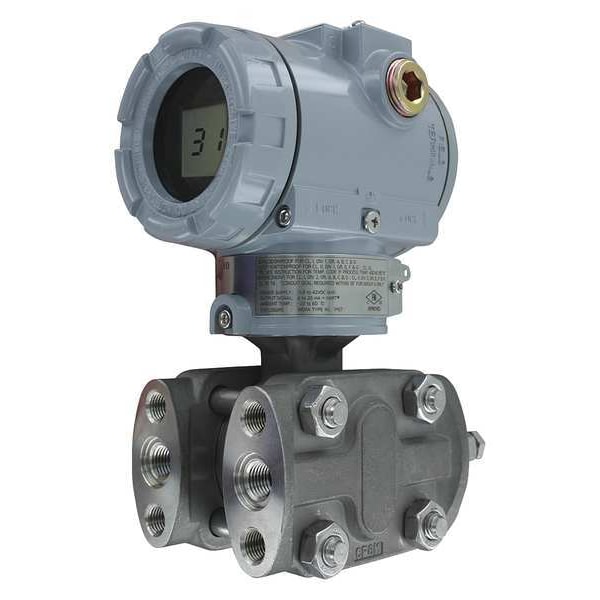

- Indicating Differential Transmitter
- Accuracy
- +/-0.075% of Full Scale
- Output
- 4 to 20mA DC/HART Communication
- Power Required
- 11.9 to 45V DC
- Process Connection Type
- NPT
- Connection Location
- Front
- Operating Temp. - Transmitter
- -40 Degrees to 248 Degrees F
- Series
- 3100D
- Standards
- FM
- Includes
- Instruction Manual
- Loop Resistance
- 0 to 1500 ohms
- Features
- Configurable Using Zero/Span Buttons (No Calibrator Required), Fail-Mode Process Function
- Display Units
- Multiple Units
- NEMA Rating
- NEMA 4X
- Power Required - Transmitters
- 12 to 45V DC
- Thermal Error
- +/-0.125% span/32 Degrees C
- Safety Rating - Transmitter
- Class I Div.1 Groups A, B, C, D
- Operating Temp.
- -40 Degrees to 248 Degrees F
- Connection Location - Transmitter
- Front
- Compatible With
- Clean Dry Non-corrosive Gasses
- Housing
- Epoxy Coated Aluminum
- Process Connection Type - Transmitter
- FNPT
- Electrical Connections - Transmitter
- Screw Terminals
- Transmitter Type
- Explosion Proof Differential Transmitter
- Output - Transmitter
- 4 to 20mA DC, HART Communication
- Display
- 5 Digit Display
- Wiring Entry - Transmitter
- 1/2 in FNPT
- Max. Pressure (PSI)
- 2,000 psi
- Shape - Transmitter
- Irregular
- Calibration Certificate
- N
- Display - Transmitter
- 5 Digit LCD
- Range Units - Transmitter
- in wc
- Safety Rating
- Class I Div. 1 Group A, B, C, D
- Electrical Connections
- Screw Terminals
- Wetted Materials - Transmitters
- 316L Stainless Steel
- Wetted Materials
- 316L Stainless Steel
- Range Values - Transmitter
- 0 to 150
- Process Connection
- 1/4 in Female NPT
- Range
- 0 to 150 in wc
- Accuracy - Transmitter
- +/-0.075% Full Scale
- Housing Material
- Aluminum
- For Use With Media Type
- Gases, Liquids, Steam, Vapors
- Weight
- 8.6 lb
- Process Connection Gender
- Female
- NIST Traceable Certificate
- No
- Burst Pressure
- 10,000 psi
- Response Time
- 0.12 sec
- Pressure Units
- in wc
- Shape
- Irregular
- Primary Scale Range
- 0 to 150 in wc
- Explosion/Fire Proof
- Yes
- Maximum Loop Resistance
- 1500 Ohm
- Overpressure
- 2,000 psi
- Wiring Entry
- (2) 1/2 in FNPT Conduit Connection
- IP Rating
- IP66
- Maximum Pressure
- 150 in wc
- Display Type
- Digital
- Maximum Operating Temperature
- 248 Degrees F
- Number of Wires
- 2
- Minimum Operating Temperature
- -40 Degrees F
- Minimum Pressure
- 1.5 in wc
- Display Screen Type
- LCD
- Primary Scale Units
- in wc
- Number of Digits
- 5
- Process Connection Location
- Front
- Input Voltage
- 11.9 to 45V DC
- Digital Display Screen Type
- LCD
- NEMA Enclosure Rating
- 4X
- Loop Resistance - Maximum
- 1500 Ohm
- Process Media Temperature - Maximum
- 248 Degrees F
- Electrical Connection
- Screw Terminals
- Pressure Measurement - Maximum
- 150 in wc
- Process Media Temperature - Minimum
- -40 Degrees F
- Pressure Measurement - Minimum
- 1.5 in wc
- Includes NIST-Traceable Calibration Certificate
- No NIST-Traceable Calibration Certificate Included
- Output Power
- 4 to 20mA DC/HART Communication
