  11. Threading Tool, 1-1/2 in L, Carbide

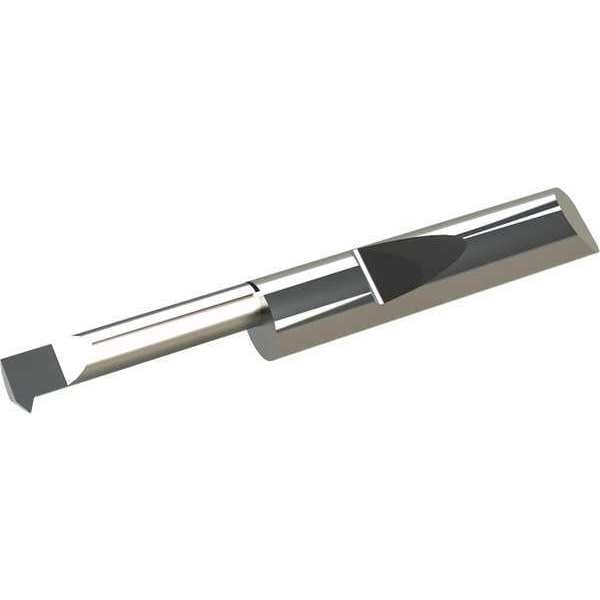

Micro 100 Threading Tool, 1-1/2 in L, Carbide QIT-110250X - main

Threading Tool, 1-1/2 in L, Carbide

  • Mfr # QIT-110250X

  • Zoro # G7823837

product price: $41.59
/ea

Key Features

Overall Length
1-1/2 in
Shank Material
Carbide
Cutting Direction
Right Hand
Projection
0.0300 in
Shank Dia.
3/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QIT-110250X
Zoro #
G7823837
UPC #
728709159439
Country of Origin
United States

Dimensions

Overall Length
1-1/2 in
Shank Dia.
3/16 in
Max. Depth
0.25"
Hole Dia.
0.11"
Max. Hole Depth
1/4 in
Min. Hole Dia.
0.1100 in
Thread Size
40-56
Corner Radius
0.002"
Min. Bore Dia.
0.1100"
Neck Dia.
0.0800"
Max. Bore Depth
1/4"

Details

Item
Threading Tool
Shank Material
Carbide
Cutting Direction
Right Hand
Finish
AlTiN Coated
Projection
0.0300 in
Material
C2 Micrograin Carbide
Style
Quick Change Internal Threading Tool
Quick Change
Yes
Thread Standard
ANSI, Metric 60 Degrees , UN
Thread Direction
Right Hand
Center to Cutting Tip
0.0160 in
Finish - Machining
AlTiN
Included Angle
60 Degrees
Primary Material Application
Alloy Steel, Inconel, Nickel, Stainless Steel, Steel, Titanium, Tool Steel
Overhang
0.5900 in
Measurement System
Fractional Inch
Max. Threads per Inch
64
Coolant Fed
Coolant Through
Cutting Application
Threading
Series
QIT
Features
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Primary Material Application ISO Code
M, N, P, S
Min. Teeth per Inch
32
Offset Point
0.0200 in
Cutter Material
Carbide
Offset
0.020"

Description

Threading Tool, Included Angle 60 Degrees , Carbide, AlTiN, 0.0160 in, Coolant Through, Threading
