Shop MILLER ELECTRIC

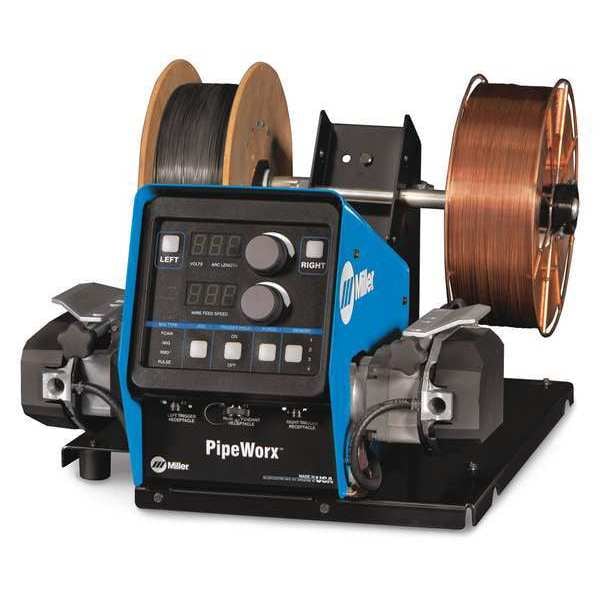

Dual Wire Feeder, 50 to 780ipm, 24VAC

  • Mfr # 300366

  • Zoro # G5684567

product price:
$
9,365.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Piperworx FieldPRO 350
Hz
50/60
Type
Bench
Rated Output
750 A @ 100 V
Overall Width (In.)
13 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
300366
Zoro #
G5684567
UPC #
715959381925
Country of Origin
United States

Dimensions

Overall Width (In.)
13 in
Overall Height (In.)
14 in
Wire Size (In.)
0.035 & 0.045
Overall Depth (In.)
35 in
Minimum Wire Diameter
0.035 in (Flux-Cored)
Overall Height
14 in
Overall Depth
35 in
Maximum Wire Diameter
0.062 in (Flux-Cored)
Maximum Spool Diameter
12 in
Overall Width
13 in
Wire Diameter Solid - Minimum
0.035 in
Wire Diameter Flux-Cored - Minimum
0.035 in
Wire Diameter Flux-Cored - Maximum
0.062 in
Wire Diameter Solid - Maximum
0.062 in

Details

Item
Wire Feeder
Series
Piperworx FieldPRO 350
Hz
50/60
Type
Bench
Rated Output
750 A @ 100 V
Input Voltage
24V AC
Features
Input Welding Rating 100 Volts
Application
For Solid Or Flux Cored Wire
Weight
90 lb
Compatible with Brand
Miller
Max. Input Current
11 A
Wire Feeder Configuration
4-Roll
For Wire Type
Flux-Cored
Maximum Wire Feed Speed
19.8 m/min
Welding Processes
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Input Frequency
50/60 Hz
Standards
CSA
Welding Mode
CC/CV
Minimum Wire Feed Speed
1.3 m/min
Effective Input Current
11 A at 24 VAC
Maximum Spool Weight
60 lb
Includes
0.035/0.045 Combination Smooth V-Drive Rolls, 0.045 Knurled V-Drive Rolls, Y-Hose for Single Gas Input
Model
300366
Portability
Benchtop
Welding Power Source Type
CC/CV
Compatible Brand
Miller
Output Current Range
750 A
Process
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Maximum Input Current
11 A
Wire Feeder Series
Piperworx Dual Feeder
Wire Feeder Model
300366
Compatible Welder Series
PipeWorx Dual Bench

Description

Wire Feeder, Compatible with Brand Miller, For Wire Type Flux-Cored, Max. Input Current 11 A, Effective Input Current 11 A at 24 VAC, Input Frequency 50/60 Hz, Input Voltage 24 V AC, Maximum Spool Diameter 12 in, Maximum Spool Weight 60 lb, Maximum Wire Diameter 0.062 in (Flux-Cored), Maximum Wire Feed Speed 19.8 m/min, Minimum Wire Diameter 0.035 in (Flux-Cored), Minimum Wire Feed Speed 1.3 m/min, Phase Single-Phase, Rated Output 750 A @ 100 V, Welding Mode CC/CV
