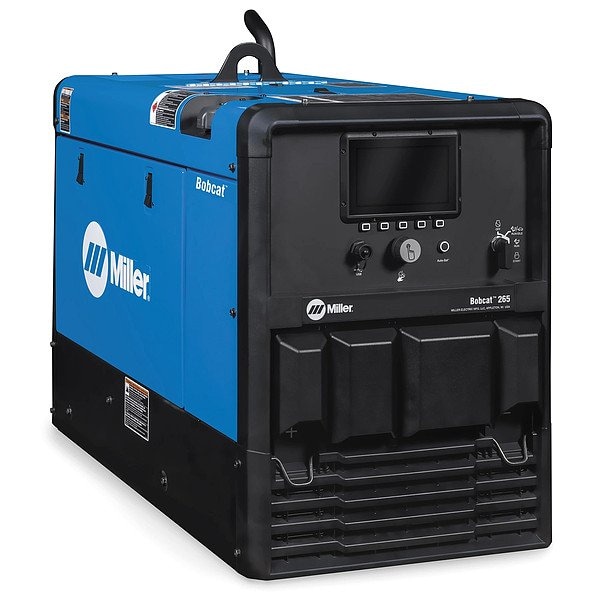

Engine-Driven Welder Generator, Bobcat 265 Series, Electric Start, 11,000 W Peak

  • Mfr # 907826

  • Zoro # G210080882


product price:  $10,284.99
/ea
Additional $245.00 delivery surcharge applies per item.
See details

Key Features

Series
Bobcat 265
Start Type
Electric
Continuous Auxiliary Power
9,500 W
Peak Auxiliary Power
11,000 W
Engine Brand
Kohler
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907826
Zoro #
G210080882
UPC #
715959704281
Country of Origin
United States

Dimensions

Overall Width
20.13 in
Overall Height
26.5 in
Overall Depth
37.06 in
For Aluminum Thickness - Minimum
24 ga
For Stainless Steel Thickness - Maximum
46,026 in
For Steel Thickness - Maximum
46,026 in
For Stainless Steel Thickness - Minimum
26 ga
For Steel Thickness - Minimum
24 ga
For Aluminum Thickness - Maximum
46,026 in

Details

Item
Engine-Driven Welder Generator
Series
Bobcat 265
Start Type
Electric
Continuous Auxiliary Power
9,500 W
Peak Auxiliary Power
11,000 W
Engine Brand
Kohler
Includes
10-Pin (Direct Connect for Spoolgun), Auto-Set Technology, Full Process Selection, LCD Display, Remote Start/Stop, USB Port
Phase
Single
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
cCSAus
Application
Aluminum Welding, Fabrication, Field Welding, Industrial Welding, Mobile Fabrication and MRO, Structural Welding
Fuel Tank Capacity
11 gal
TIG Welding Maximum Output Current
265 A
Stick Welding Minimum Output Current
20 A
Model
Bobcat 265
Welding Mode
CC/CV
Sound Level
64 dB @ (Idle), 73 dB @ (Weld)
Stick Welding Maximum Output Current
265 A
Remote Connection Type
10-Pin (Miller)
MIG Welding Minimum Output Current
20 A
MIG Welding Output @ Duty Cycle
265 A @ 27 V, 100%
Circuit Breaker
Yes
TIG Welding Output @ Duty Cycle
265 A @ 27 V, 100%
For Material Type
Aluminum, Stainless Steel, Steel
TIG Arc Start Feature
Arc Start
Weight
382 lb
MIG Welding Maximum Output Current
265 A
Horsepower
23.5 hp
Stick Welding Output @ Duty Cycle
265 A @ 27 V, 100%
Generator Fuel Type
Gasoline
Oil Capacity
1 3/4 qt
Polarity
DC
Color
Black, Blue
Engine Displacement
44.2 cu in
TIG Welding Minimum Output Current
20 A
Generator Outlets
(2) GFCI 120V AC, NEMA 14-50R 120/240V AC, NEMA 6-50R 240V AC
Open Circuit Voltage
94.5 V DC
Engine Model
Kohler CH730
Rated Output @ Duty Cycle (Stick)
265 A @ 27 V, 100%
Rated Output @ Duty Cycle (MIG)
265 A @ 27 V, 100%
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Minimum
20 A
Amperage MIG - Minimum
20 A
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (TIG)
265 A @ 27 V, 100%
Amperage Stick - Maximum
265 A
Amperage TIG - Maximum
265 A
Amperage MIG - Maximum
265 A
Amperage TIG - Minimum
20 A

Description

Engine-Driven Welder Generator, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 265 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 265 A @ 27 V, 100 Percent, Phase Single, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 265 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 265 A @ 27 V, 100 Percent
