Shop MILLER ELECTRIC

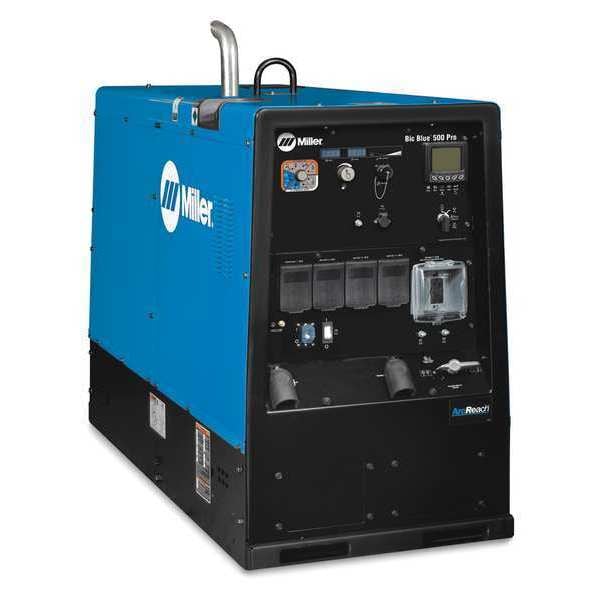

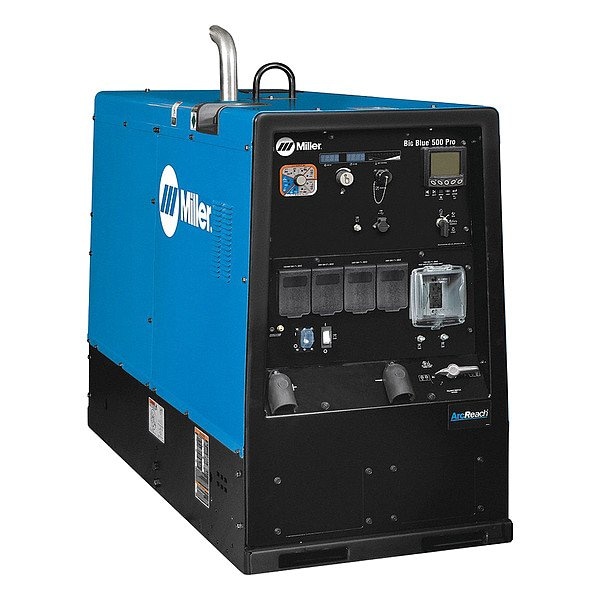

Engine-Driven Welder, Big Blue 500 Pro Series, Electric Start, 48.9 hp, Diesel, 27,000 W Peak

  • Mfr # 907736001

  • Zoro # G1614142

product price:
$
55,613.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Big Blue 500 Pro
Start Type
Electric
Rated Output CC/DC
400A @ 36V, 100% / 450A @ 38V, 60% / 500A @ 38V, 40%
Amperage Range
20 to 500
Continuous Auxiliary Power
20,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907736001
Zoro #
G1614142
UPC #
715959650359
Country of Origin
United States

Dimensions

Depth
69 1/2 in
Width
28 1/2 in
Height
46 in
Overall Height
46 in
Overall Depth
69.5 in
Overall Width
28.5 in
For Stainless Steel Thickness - Minimum
26 ga
For Steel Thickness - Minimum
24 ga

Details

Item
Engine-Driven Welder
Series
Big Blue 500 Pro
Start Type
Electric
Rated Output CC/DC
400A @ 36V, 100% / 450A @ 38V, 60% / 500A @ 38V, 40%
Amperage Range
20 to 500
Continuous Auxiliary Power
20,000 W
Peak Auxiliary Power
27,000 W
Engine Brand
Kubota
HP
48.9 hp
Fuel Type
Diesel
Phase
Three
Includes
ArcReach Remote Control Technology
Standards
CSA Certified
Application
Construction, Fabrication, Infrastructure, Maintenance/Repair
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Coolant Tank Capacity
9 qt
Polarity
DC
TIG Welding Minimum Output Current
20 A
Fuel Tank Capacity
25 gal
Horsepower
49 hp
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Circuit Breaker
Yes
Open Circuit Voltage
92 V DC
Engine Model
Kubota V2403
MIG Welding Maximum Output Current
500 A
MIG Welding Output @ Duty Cycle
400 A @ 36 V, 100%, 450 A @ 38 V, 100%, 500 A @ 40 V, 100%
For Material Type
Stainless Steel, Steel
TIG Welding Output @ Duty Cycle
400 A @ 36 V, 100%, 450 A @ 38 V, 100%, 500 A @ 40 V, 100%
Stick Welding Maximum Output Current
500 A
Welding Mode
CC/CV
Stick Welding Minimum Output Current
20 A
TIG Welding Maximum Output Current
500 A
Generator Fuel Type
Diesel
Remote Connection Type
14-Pin (Miller)
Weight
1,750 lb
Color
Blue
Oil Capacity
10 qt
Stick Welding Output @ Duty Cycle
400 A @ 36 V, 100%, 450 A @ 38 V, 100%, 500 A @ 40 V, 100%
Sound Level
65.9 dB (Idle), 74.3 dB (Weld)
Generator Outlets
20 A 120V GFCI 5-20R (4), 20 A 120V L6-20R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R
Model
907736001
Rated Output @ Duty Cycle (Stick)
400 A @ 36 V, 100%, 450 A @ 38 V, 100%, 500 A @ 40 V, 100%
Amperage TIG - Minimum
20 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Minimum
20 A
Amperage MIG - Minimum
60 A
Rated Output @ Duty Cycle (MIG)
400 A @ 36 V, 100%, 450 A @ 38 V, 100%, 500 A @ 40 V, 100%
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (TIG)
400 A @ 36 V, 100%, 450 A @ 38 V, 100%, 500 A @ 40 V, 100%
Amperage MIG - Maximum
500 A
Amperage TIG - Maximum
500 A
Amperage Stick - Maximum
500 A

Description

Engine-Driven Welder, Color Blue, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 500 A, MIG Welding Output @ Duty Cycle 400 A @ 36 V, 100 Percent, 450 A @ 38 V, 100 Percent, 500 A @ 40 V, 100 Percent, Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 500 A, Stick Welding Minimum Output Current 20 A
